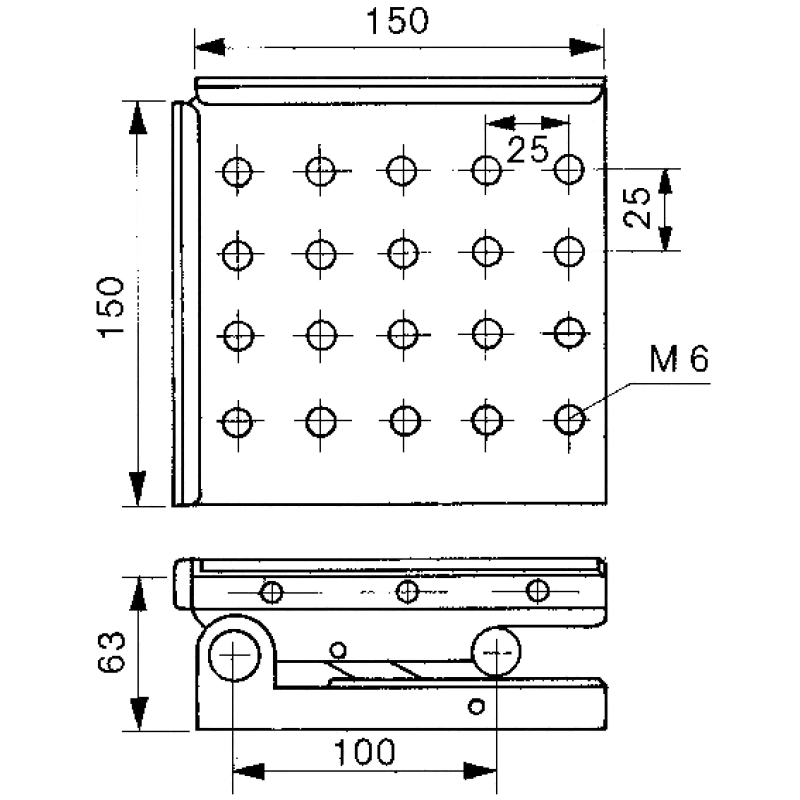

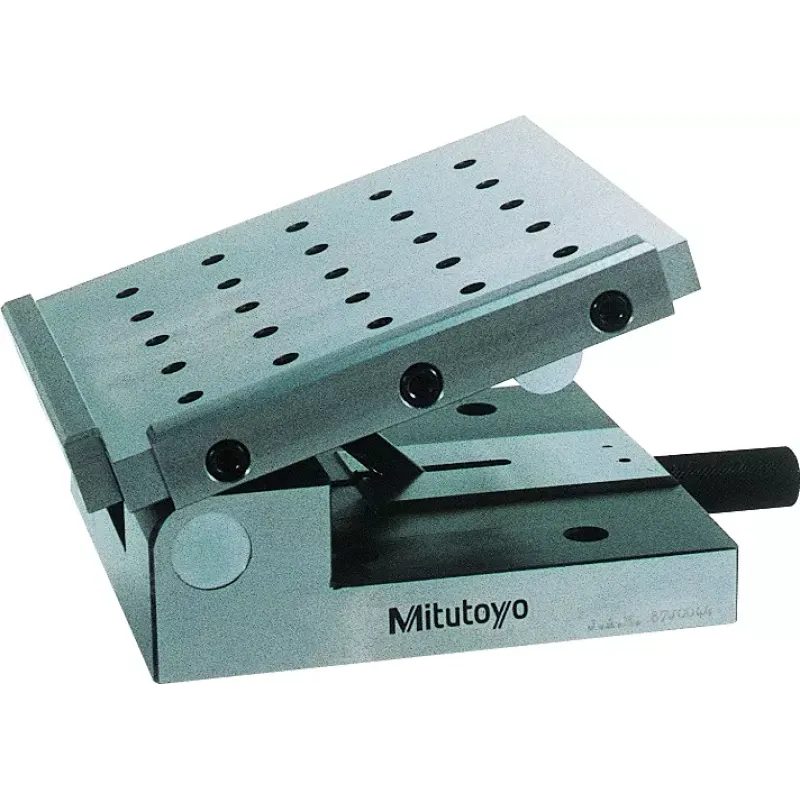

Precision Sine Plate 150x150mm, with M6 Holes 930-626 Mitutoyo

Precision Sine Plate 150x150mm, with M6 Holes 930-626 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    930-626
  • Available:
    In stock
  • Delivered:
    In a carton box
  • Mass:
    7.6
  • Parallelism:
    0.002 mm / 100 mm
  • Remarks:
    With M6 clamping holes
  • Setting accuracy at 45°:
    ±15"
  • Squareness:
    0.005 mm / 100 mm
4,518.00€
In stock

Description

  • Sine bar style of auxiliary plate.
  • It is made of tool steel, hardened and precision ground.
  • Accurate angle setting is made by gauge blocks, max. 45°.
  • 930-626 Work piece can be fixed on plate surface by tap holes and stoppers on side.
  • 930-628 and 930-629 can set the angle at two directions which go straight angularly.
  • 930-629 Permanently magnet chuck is adapted.
