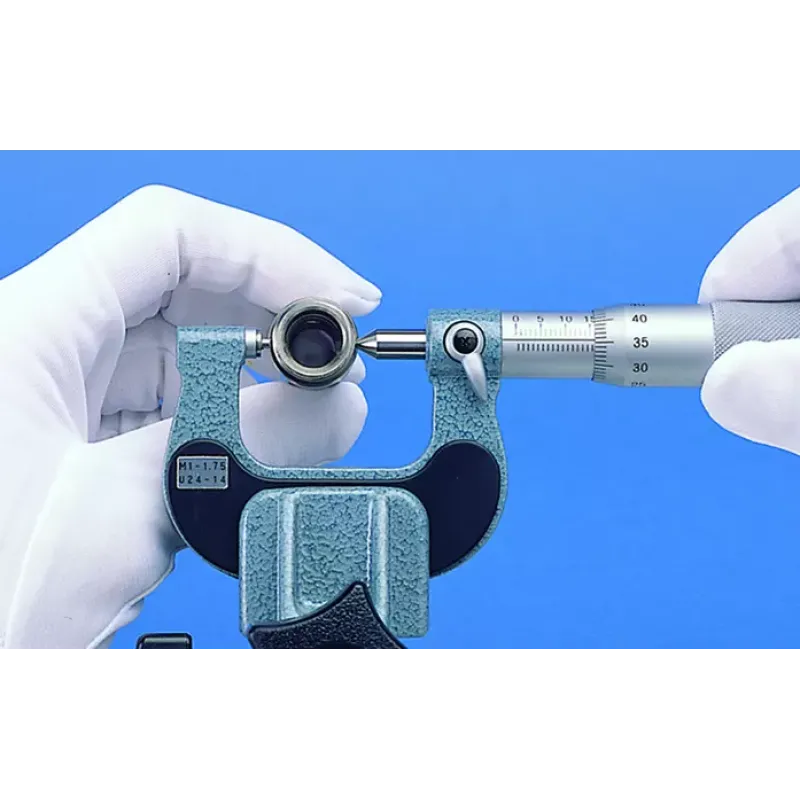

Screw Thread Micrometer 25-50mm, 2-3mm/13-9TPI 125-109 Mitutoyo

Screw Thread Micrometer 25-50mm, 2-3mm/13-9TPI 125-109 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    125-109
  • Available:
    In stock
  • Delivered:
    Including box, spanner, setting standard 60°
  • Digital/Analog:
    Analog
  • Graduation:
    0,01 mm
  • Inch-Metric:
    Metric
  • Mass:
    250
  • Measuring face:
    Hardened steel, fixed anvil/spindle
  • Measuring spindle:
    With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
  • Range:
    25 - 50
  • Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
  • Spindle feed error:
    3
  • Thread to be measured (Metric/Unified):
    2-3 mm / 13-9 TPI
317.00€
In stock

Description

This Screw Thread Micrometer has a fixed anvil, offering the following benefits:
  • Fixed anvil type.
  • It directly indicates screw pitch diameter, meaning no need for calculation.
