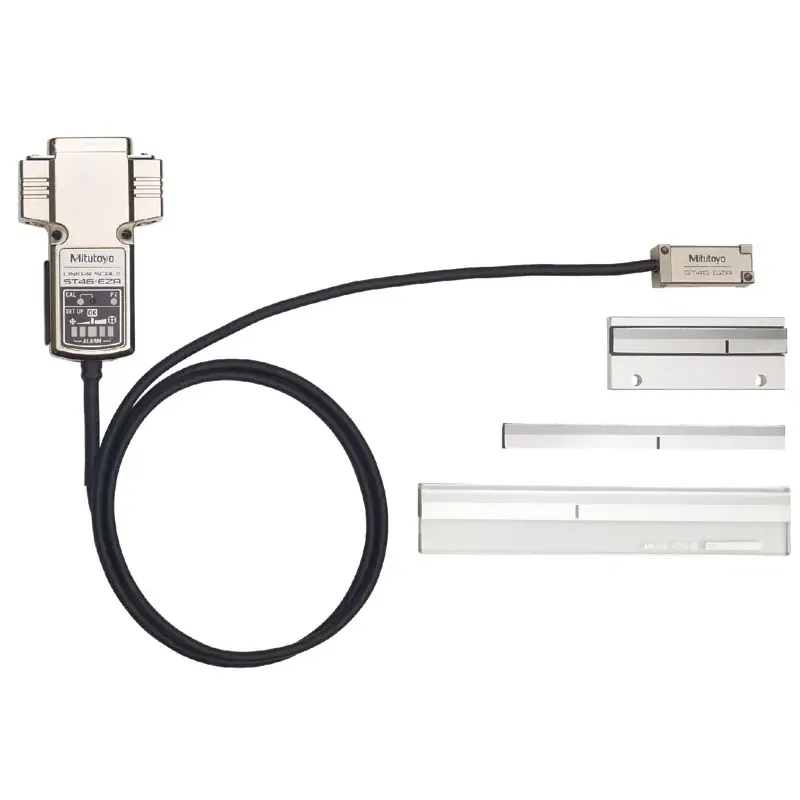

ST46EZA Тип Б ST46EZA Type B Mitutoyo
- Производитель:
- Модель:ST46EZA Type B
- Доступно:Есть в наличии11
- Accuracy (20°C):Effective range 10 to 300 mm: ±1 µm Effective range 350 to 500 mm:±2 µm Effective range 600 to 1,000 mm: ±3 µm Effective range 600 to 1,000 mm: ±3 µm Effective range: 1,100 to 3,000 mm: ±3µm/m
- Detection Method:Reflective photoelectric linear encoder
- Effective range:10 to 3000 mm
- Internal expansion coefficient:(8±1) x 10-6°C
- Maximum response speed:2.6 m/s (at sine wave amplitude -3dB)
- Operating temperature / humidity:0 to 40°C, 20 to 80% RH (no condensation)
- Output signal:Type B: 2-phase square wave signals, reference point pulse, external reset input Type C: 2-phase square wave signals, reference point pulse, 2 phase sinusoidal signal
- Power supply voltage:5VDC ± 5%
- Scale reference point:With scale reference point (50 mm pitch, 10 to 80 mm: Center point)
- Storage temperature / humidity:-20 to 60°C, 20 to 80% RH (no condensation)
