Universal Micrometer Interchangeable Avil/Spindle, 0-25mm 116-101-10 Mitutoyo

Rating:

0 reviews
Manufacturer:
Mitutoyo
Model:
116-101-10
SKU:
MCN-25B
Available:
In stock11
Model:
MCN-25B
Delivered:
Including box, plain and 60° thread setting standard (25 mm- 50 mm), key interchangeable anvils/spindle-tips not included
Digital/Analog:
Analog
Graduation:
0,01 mm
Inch-Metric:
Metric
Mass:
250
Measuring face:
Interchangeable anvil/spindle inserts (optional)
Measuring force:
5 - 10
Measuring spindle:
ø6,35 mm, spindle pitch 0.5 mm
Range:
0 - 25
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Spindle feed error:
3

Price: 406.00€

In stock

Quantity:

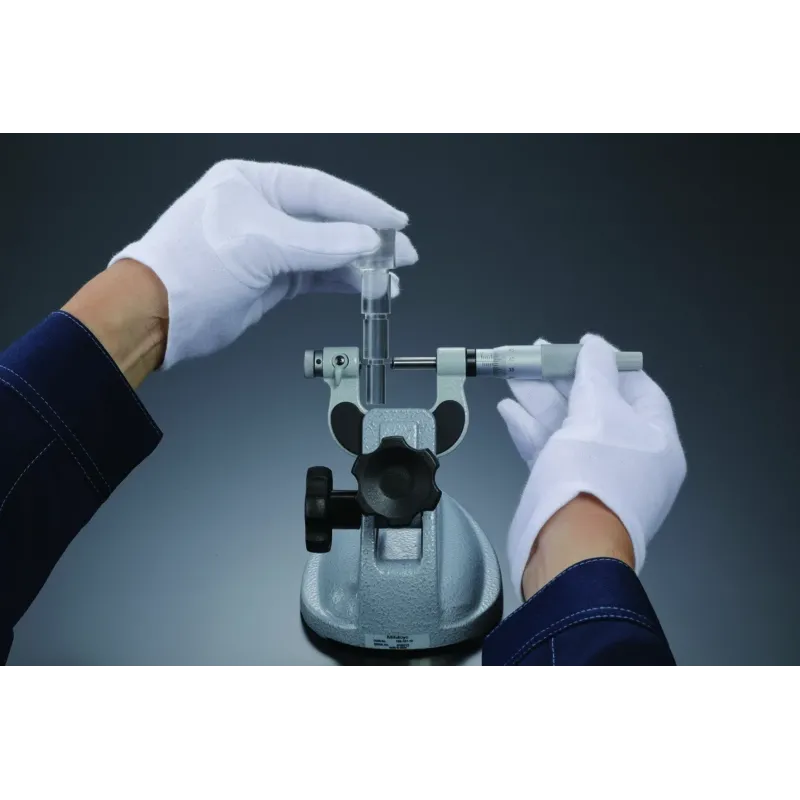

This Universal Micrometer should be used with optional interchangeable tips. It offers you the following benefits:

Its non-rotating spindle accepts seven forms of optional interchangeable anvil/spindle tip
(including flat, spline, spherical, point, knife-edge, disc, and blade) allowing you to use it in a wide range of applications.
Optional anvils/spindle-tips for screw thread measurement (matching V and cone) are also
available.
