Tubular Inside Micrometer, Hardened Face 50-1500mm 137-205 Mitutoyo

Tubular Inside Micrometer, Hardened Face 50-1500mm 137-205 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    137-205
  • Available:
    In stock
  • Delivered:

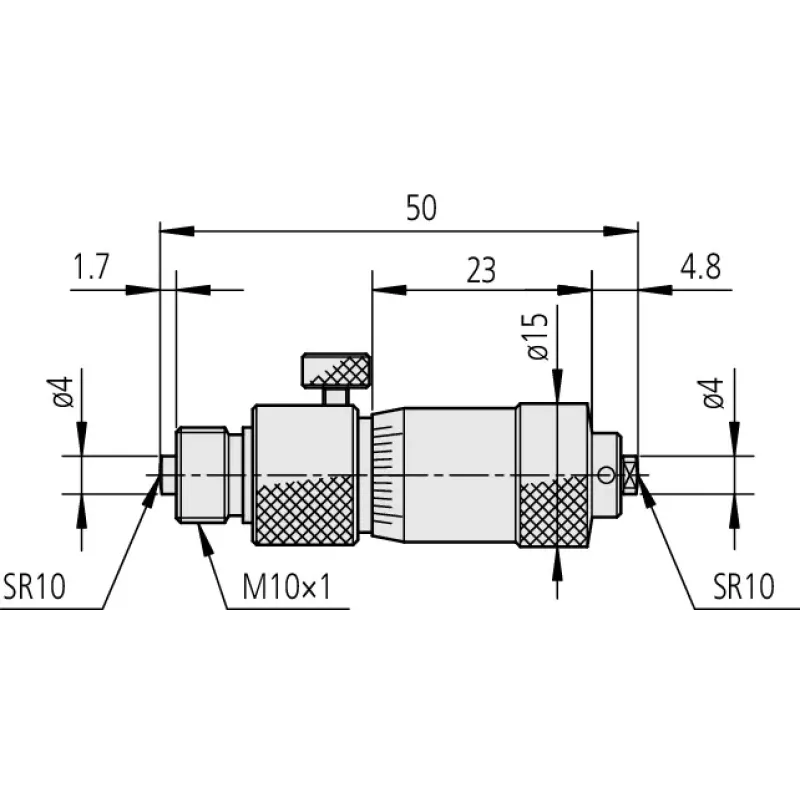

    Including box, spanner, extension rods (10 pcs.), micrometer head 137-011
  • Digital/Analog:
    Analog

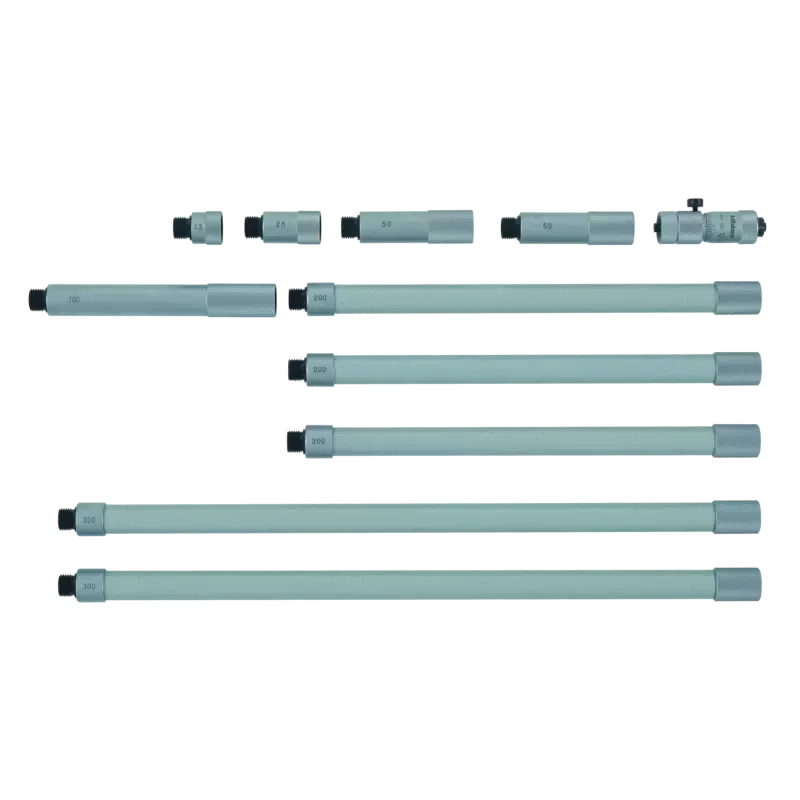

  • Extension rods:
    10 (13, 25, 50 (2 pcs.), 100, 200 (3 pcs.), 300 mm (2 pcs.))
  • Graduation:
    0.01 mm
  • Inch-Metric:
    Metric
  • Limit of error:
    ±(3+number of rods+max. measurement length/50) µm
  • Mass:
    1225
  • Measuring face:
    Hardened steel
  • Measuring method:
    2-point
  • Measuring span:
    13 mm
  • Measuring spindle:
    Spindle pitch 0,5 mm
  • Range:
    50 - 1,500
  • Scale:
    Thimble and sleeve satin chrome finish, ø15 mm
  • Spindle feed error:
    3
944.00€
In stock

Description

This is an extension rod type inside micrometer that offers you the following benefits:
  • Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
  • Carbide measuring faces are available.
