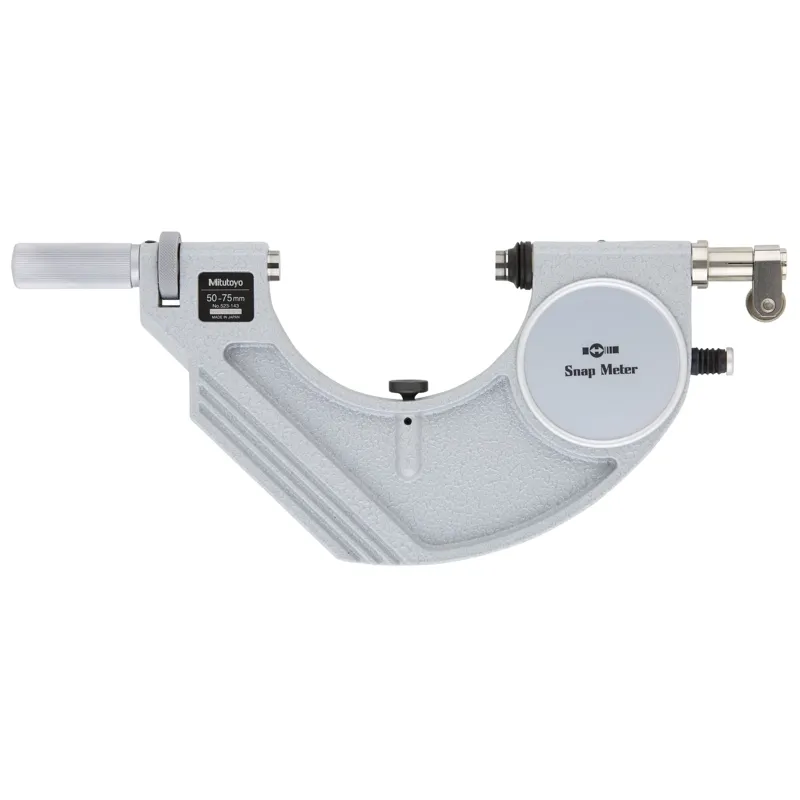

Snap Meter for Mass-Produced Parts 50-75mm, for Indicators with 8mm Stem 523-143 Mitutoyo

Snap Meter for Mass-Produced Parts 50-75mm, for Indicators with 8mm Stem 523-143 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    523-143
  • Available:
    In stock
  • Anvil retracting stroke:
    2 mm
  • Delivered:

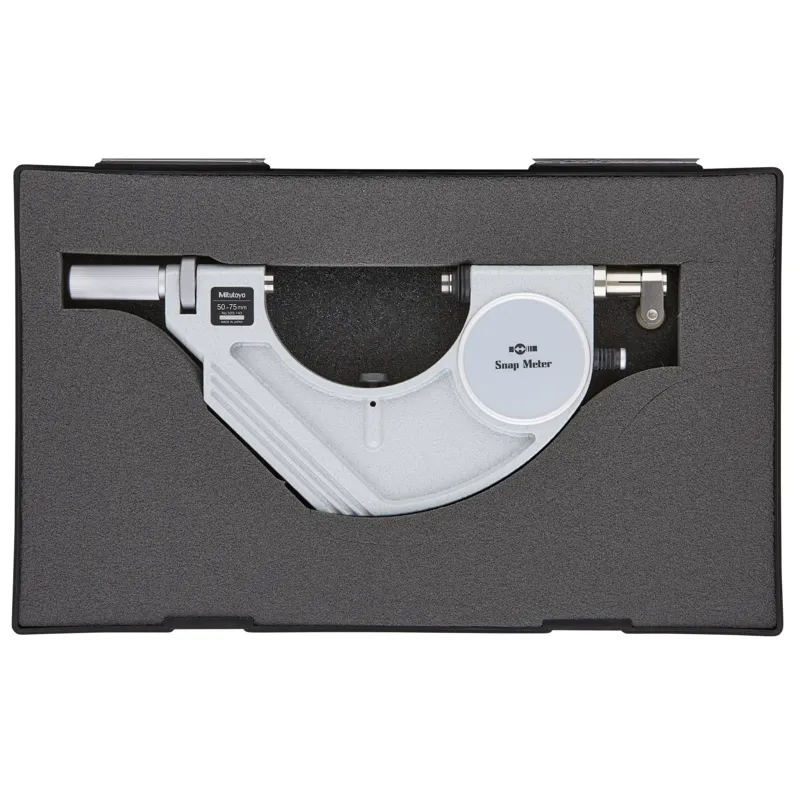

    Including box, workpiece rest, setting standard, without indicator
  • Digital/Analog:
    Analog
  • Flatness:
    0,3 μm
  • Inch-Metric:
    Metric
  • Mass:
    920
  • Measuring face:
    Carbide-tipped, micro-lap finish ø10.8 mm
  • Measuring force:
    5 - 10
  • Measuring spindle:
    ø10,8 mm
  • Parallelism:
    1 μm
  • Range:
    50 - 75
  • Repeatability:
    0.4 µm
746.00€
In stock

Description

This Snap Gauge designed to mount an indicator to suit the measurement application, and offers the following benefits:
  • It‘s ideal for rapidly inspecting workpieces, especially cylindrical, in batch or mass production situations, when you need an indication of where a measurement falls within the tolerance band.
  • You can set it with external length standards such as block gauges.
  • Easy-to-operate retracting button.
