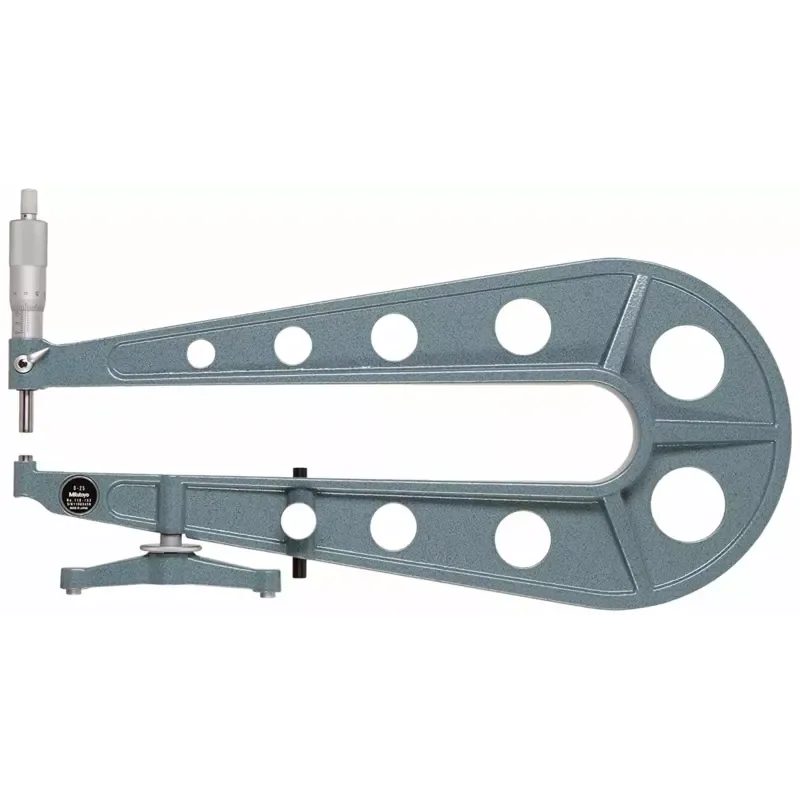

Sheet Metal Micrometer 0-25mm, Flat Anvil/spindle, 300mm Throat 118-103 Mitutoyo

Sheet Metal Micrometer 0-25mm, Flat Anvil/spindle, 300mm Throat 118-103 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    118-103
  • SKU:
    PMU300-25
  • Available:
    In stock
  • Model:
    PMU300-25

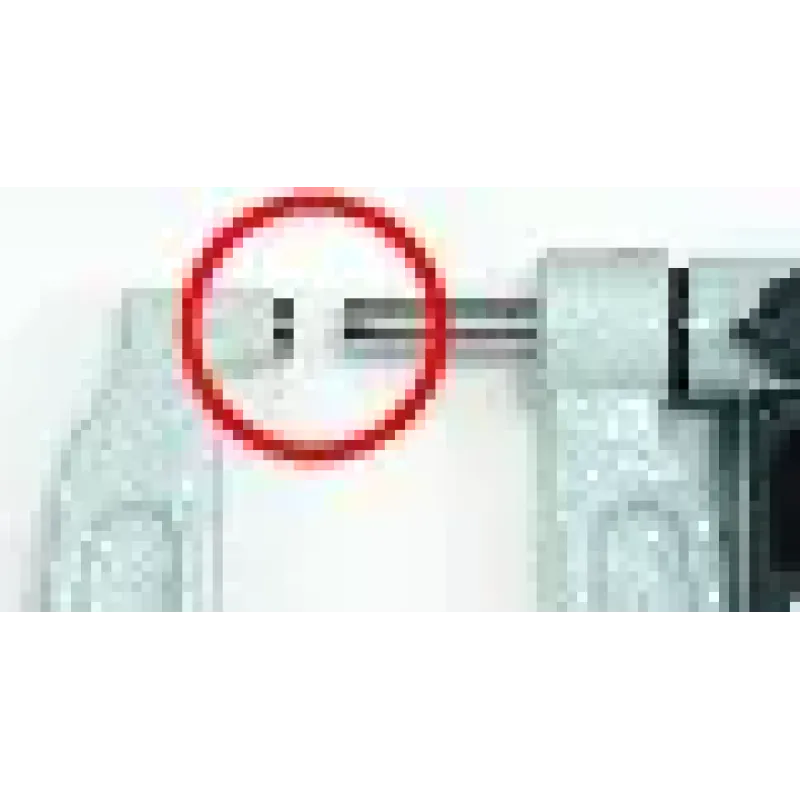

  • Anvil / Spindle:
    Type A, flat/flat
  • Delivered:
    Including box, spanner
  • Digital/Analog:
    Analog
  • Flatness:
    1 µm
  • Graduation:
    0,01 mm
  • Inch-Metric:
    Metric
  • Mass:
    2650
  • Max. Permissible Error J MPE:
    ±5 µm
  • Measuring face:
    Carbide-tipped, micro-lap finish
  • Measuring force:
    10 - 14
  • Measuring spindle:
    With spindle lock, throat depth ≤ 150 mm : ø6,35 mm throat depth =300 mm : ø8 mm, spindle pitch 0,5 mm
  • Parallelism:
    3 µm
  • Range:
    0 - 25
  • Scale:
    Thimble and sleeve satin chrome finish, ø21 mm
555.00€
In stock

Description

A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.
