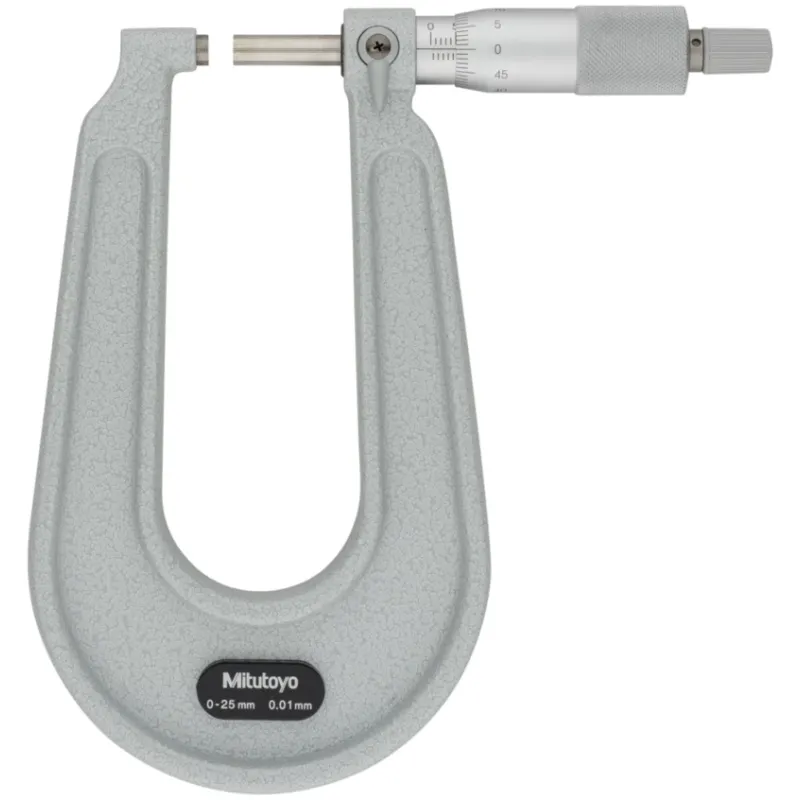

Sheet Metal Micrometer 0-25mm, Flat Anvil/Spindle, 100mm Throat 118-101 Mitutoyo

Sheet Metal Micrometer 0-25mm, Flat Anvil/Spindle, 100mm Throat 118-101 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    118-101
  • SKU:
    PMU100-25
  • Available:
    In stock
  • Model:
    PMU100-25
  • Anvil / Spindle:
    Type A, flat/flat
  • Delivered:

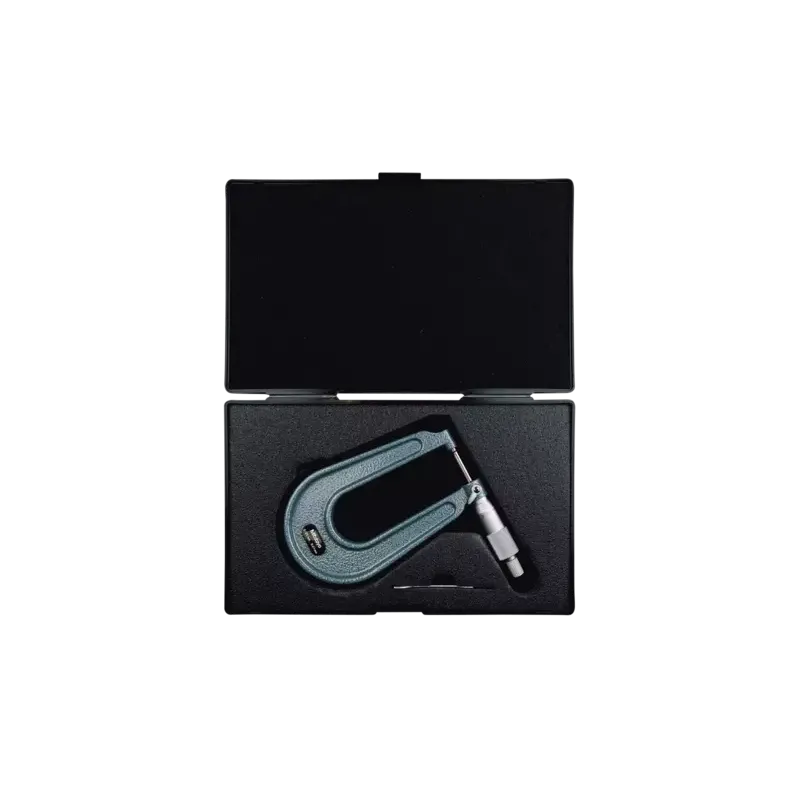

    Including box, spanner
  • Digital/Analog:
    Analog
  • Flatness:
    0,6 µm
  • Graduation:
    0,01 mm
  • Inch-Metric:
    Metric
  • Mass:
    445
  • Max. Permissible Error J MPE:
    ±4 µm
  • Measuring face:
    Carbide-tipped, micro-lap finish
  • Measuring force:
    3 - 8
  • Measuring spindle:
    With spindle lock, throat depth ≤ 150 mm : ø6,35 mm throat depth =300 mm : ø8 mm, spindle pitch 0,5 mm
  • Parallelism:
    3 µm
  • Range:
    0 - 25
  • Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
274.00€
In stock

Description

A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.
