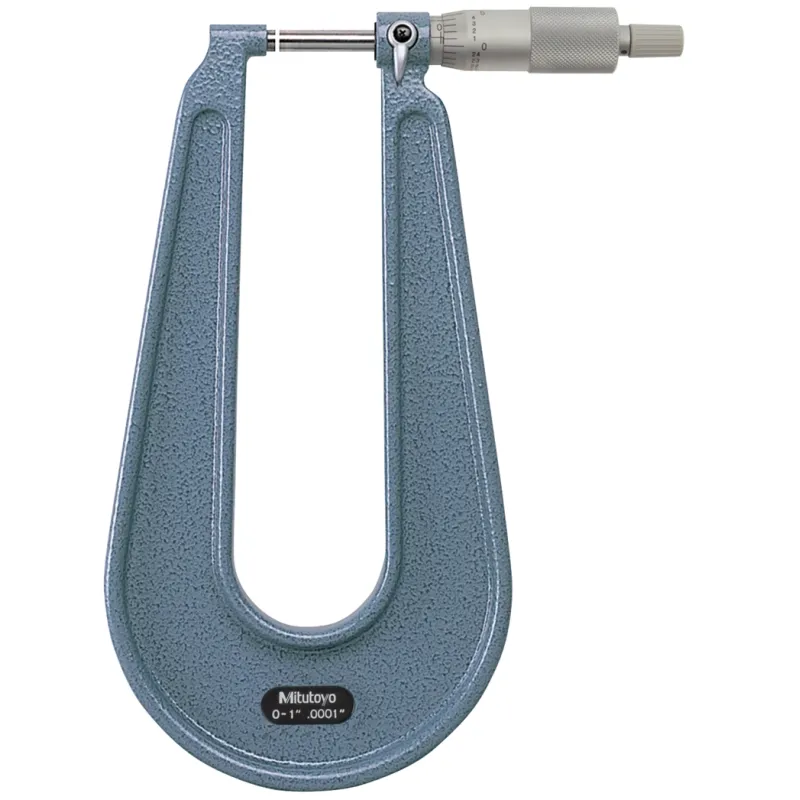

Sheet Metal Micrometer 0-1", Flat Anvil/Spindle, 6" Throat 118-129 Mitutoyo

Sheet Metal Micrometer 0-1", Flat Anvil/Spindle, 6" Throat 118-129 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    118-129
  • Available:
    In stock
  • Anvil / Spindle:
    Type A, flat/flat
  • Delivered:
    Including box, spanner
  • Digital/Analog:
    Analog
  • Graduation:
    0,0001"
  • Inch-Metric:
    Inch
  • Mass:
    740
  • Max. Permissible Error J MPE:
    ±0,0002"
  • Measuring face:
    Carbide-tipped, micro-lap finish
  • Measuring force:
    3 - 8
  • Measuring spindle:
    With spindle lock, throat depth ≤ 150 mm : ø6,35 mm throat depth =300 mm : ø8 mm, spindle pitch 0,5 mm
  • Parallelism:
    0,00012"
  • Range:
    0 - 1
  • Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
277.00€
In stock

Description

A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement. High resolution provided by a vernier scale on sleeve.
