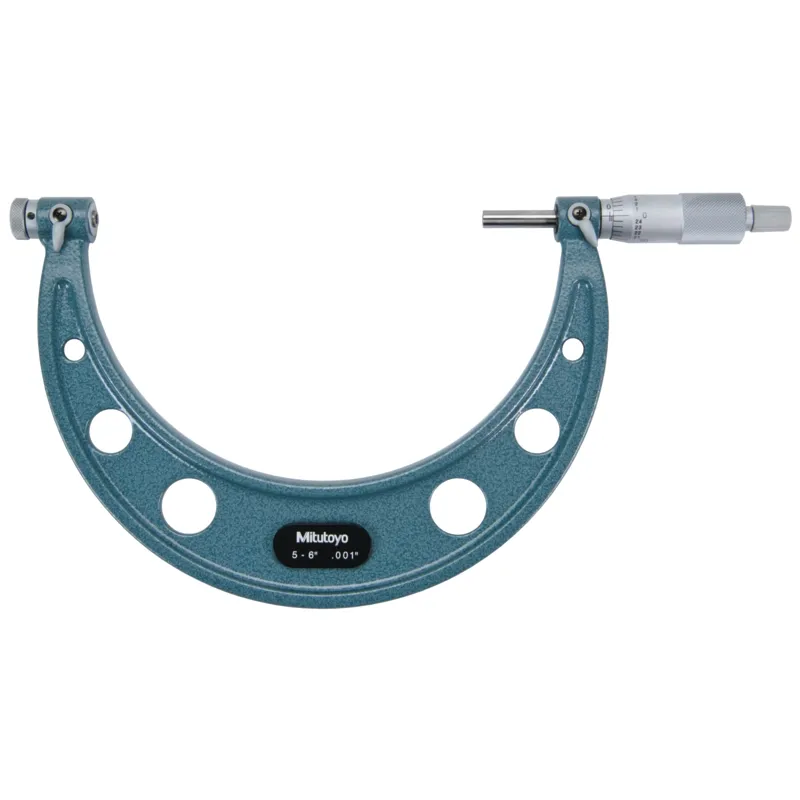

Screw Thread Micrometer Interchangeable Tips, 5-6" 126-142 Mitutoyo

Screw Thread Micrometer Interchangeable Tips, 5-6" 126-142 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    126-142
  • Available:
    In stock
  • Delivered:
    Including box, spanner, setting standard 60° (inch)
  • Digital/Analog:
    Analog
  • Graduation:
    0,001"
  • Inch-Metric:
    Inch
  • Mass:
    620
  • Measuring face:
    Interchangeable anvil/spindle inserts (optional)
  • Measuring force:
    5 - 10
  • Measuring spindle:
    With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
  • Range:
    5 - 6
  • Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
  • Spindle feed error:
    0.00015
653.00€
In stock

Description

This Screw Thread Micrometer should be used with optional, interchangeable, anvils/spindle-tips that allow you to measure a wide range of metric/unified and Whitworth screw-thread pitch diameters.

A metric (unified) 60º setting standard is included with all models except those measuring range from 0-25 mm.
