Screw Thread Micrometer Interchangeable Tips, 50-75mm 126-127 Mitutoyo

Screw Thread Micrometer Interchangeable Tips, 50-75mm 126-127 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    126-127
  • Available:
    In stock
  • Delivered:

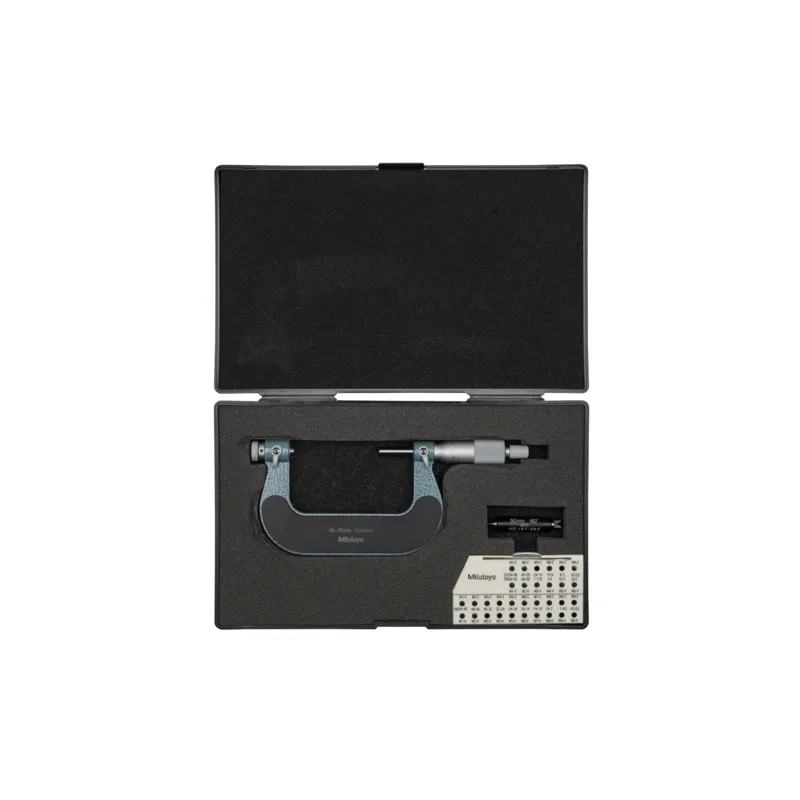

    Including box, spanner, setting standard 60°
  • Digital/Analog:
    Analog
  • Graduation:
    0,01 mm
  • Inch-Metric:
    Metric
  • Mass:
    390
  • Measuring face:
    Interchangeable anvil/spindle inserts (optional)
  • Measuring force:
    5 - 10
  • Measuring spindle:
    With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
  • Range:
    50 - 75
  • Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
  • Spindle feed error:
    3
494.00€
In stock

Description

A Mitutoyo non-digital micrometer designed to mount easily interchangeable anvils/spindle-tips for measuring a wide range of screw threads. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
