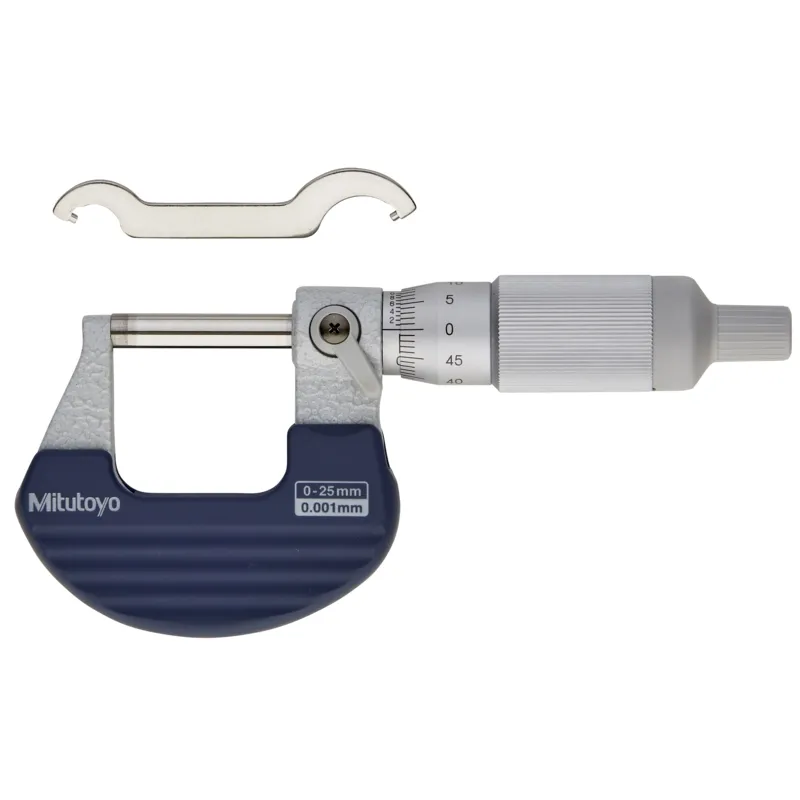

Ratchet Thimble Micrometer 0-25mm, 0,001mm 102-707 Mitutoyo

Ratchet Thimble Micrometer 0-25mm, 0,001mm 102-707 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    102-707
  • Available:
    In stock
  • Delivered:

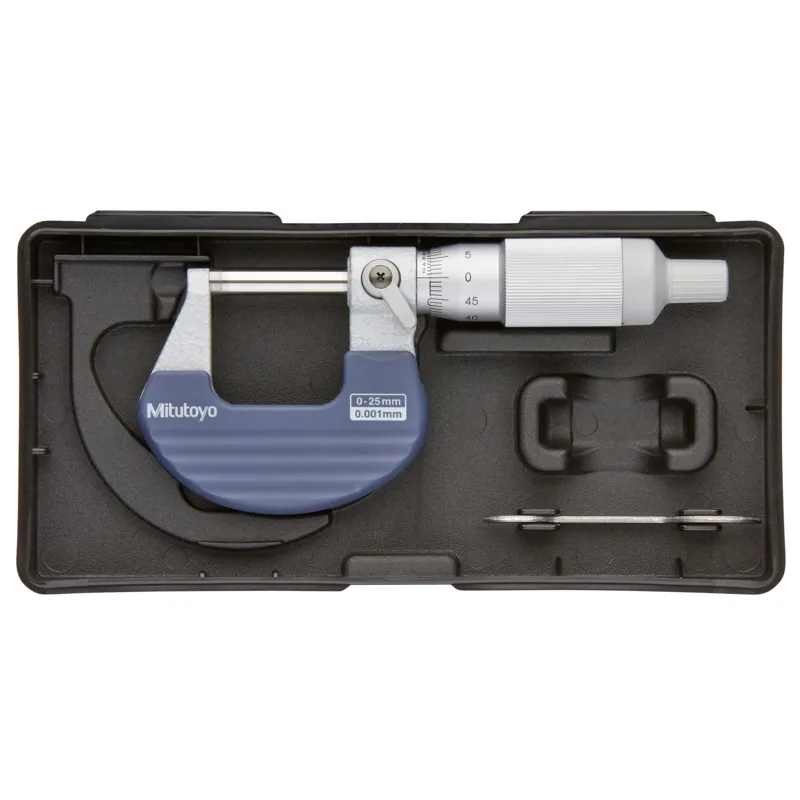

    Including box, key, certificate of inspection
  • Digital/Analog:
    Analog
  • Flatness:
    0.6 µm
  • Inch-Metric:
    Metric
  • Mass:
    180
  • Max. Permissible Error J MPE:
    ±2 µm
  • Measuring face:
    Carbide-tipped, micro-lap finish
  • Measuring force:
    5 - 10
  • Measuring spindle:
    With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
  • Parallelism:
    2 µm
  • Range:
    0 - 25
  • Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
97.00€
In stock

Description

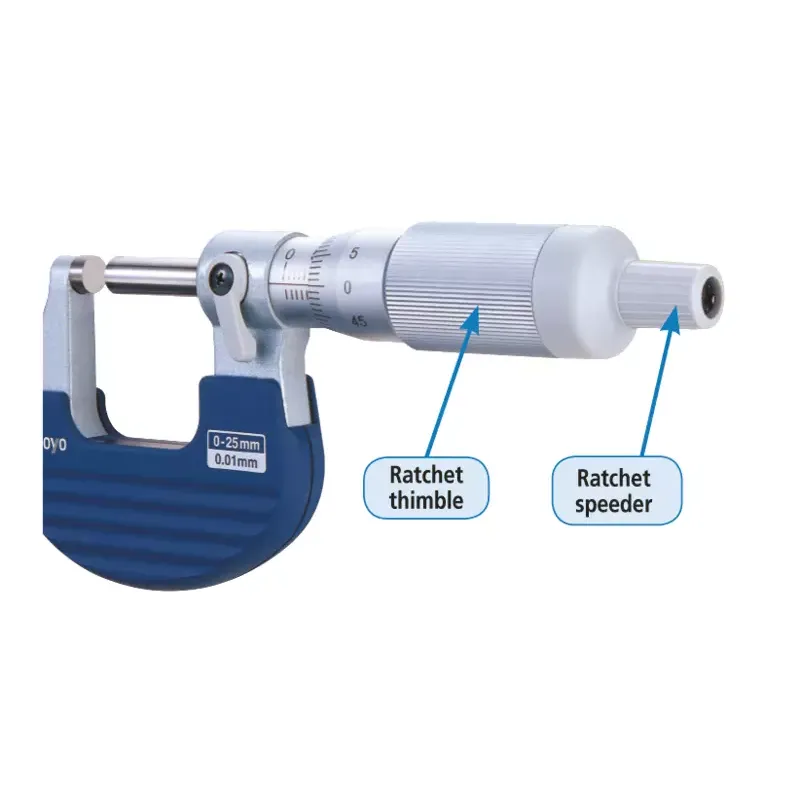

A Mitutoyo non-digital micrometer with a combined ratchet thimble/speeder to guarantee repeatable measurement. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. High resolution provided by a vernier scale on sleeve.
