Precision Lead Screw 13mm Stroke 04AZA163 Mitutoyo

Precision Lead Screw 13mm Stroke 04AZA163 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    04AZA163
  • Available:
    In stock
  • Mass:
    30
  • Measuring face:
    Hardened

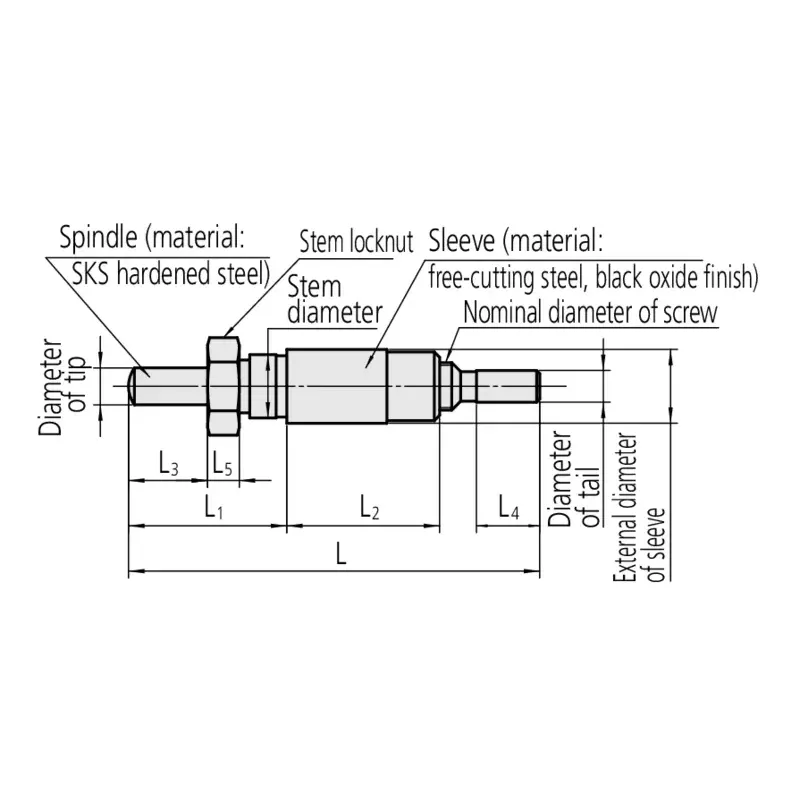

  • Measuring spindle:
    ø5 mm
  • Range:
    13
  • Screw Nominal Diameter:
    M7.35 x 0.5
  • Sleeve Diameter:
    ø10.5
  • Spindle pitch:
    0.5
  • Stem Ø:
    ø9.5
  • Tail diameter:
    ø5
47.00€
In stock

Description

  • Mitutoyo manufactures simple and less expensive precision leadscrews for precise positioning mechanisms and fine-feed mechanisms.
  • Mitutoyo also manufactures leadscrews with special specifications, such as 0,25 mm pitch, feed pitch and with dimensions and form to meet customer's requirements.
  • Main applications:

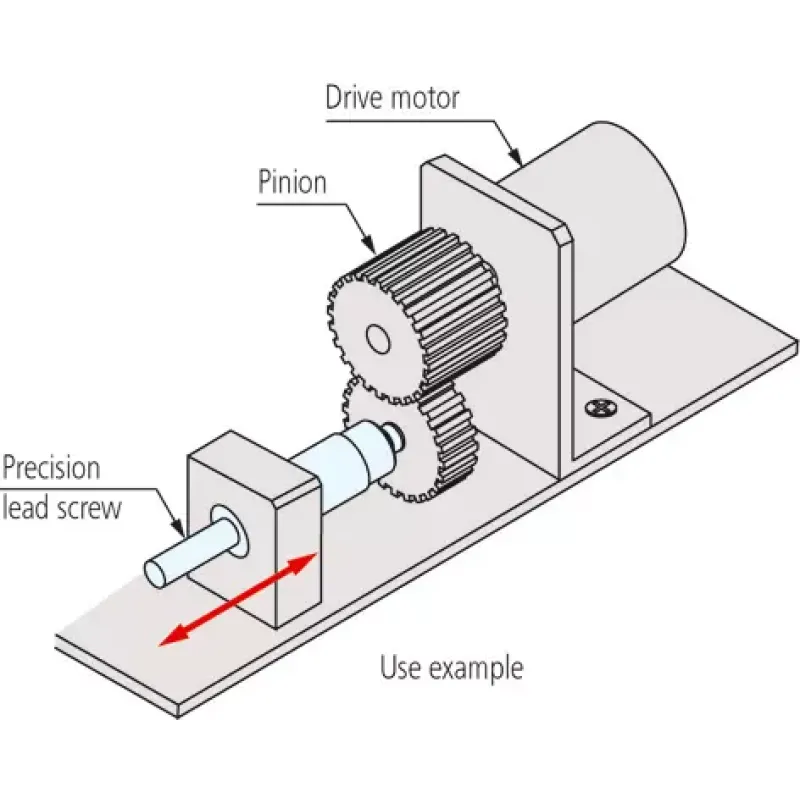

    • Precision feed stages
    • Fine adjustment of optical elements (mirrors, prisms)
    • Fiber optic centering devices
    • Various assembly and adjustment jigs
