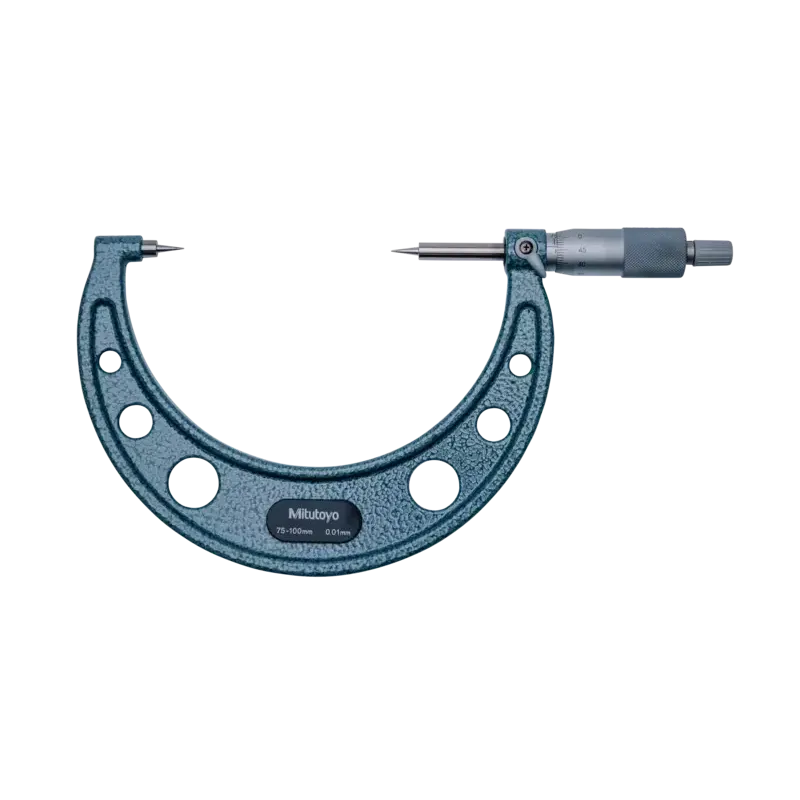

Point Micrometer with Carbide Tip 75-100mm, 15° Tip 112-168 Mitutoyo

Point Micrometer with Carbide Tip 75-100mm, 15° Tip 112-168 Mitutoyo

Rating:

0 reviews
Manufacturer:
Mitutoyo
Model:
112-168
Available:
In stock11
Delivered:

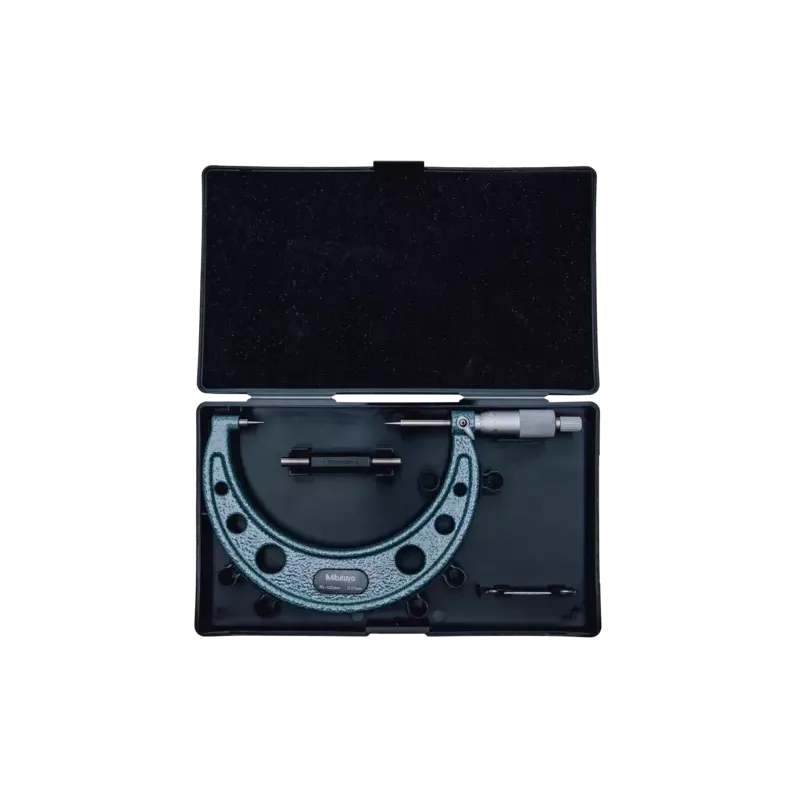

Including box, spanner, setting standard
Digital/Analog:
Analog
Graduation:
0,01 mm
Inch-Metric:
Metric
Mass:
500
Max. Permissible Error J MPE:
±4 µm
Measuring face:
Carbide pointed or hardened steel spindle and anvil, measuring point radius 0.3 mm
Measuring force:
3 - 8
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Range:
75 - 100
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Tip:
15°

Price: 401.00€

In stock

Quantity:

Description

A Mitutoyo non-digital micrometer provided with pointed spindle and anvil to enable measurement within curved, slotted features, such as drilling-bit web thicknesses. A ratchet stop guarantees repeatable measurement.
