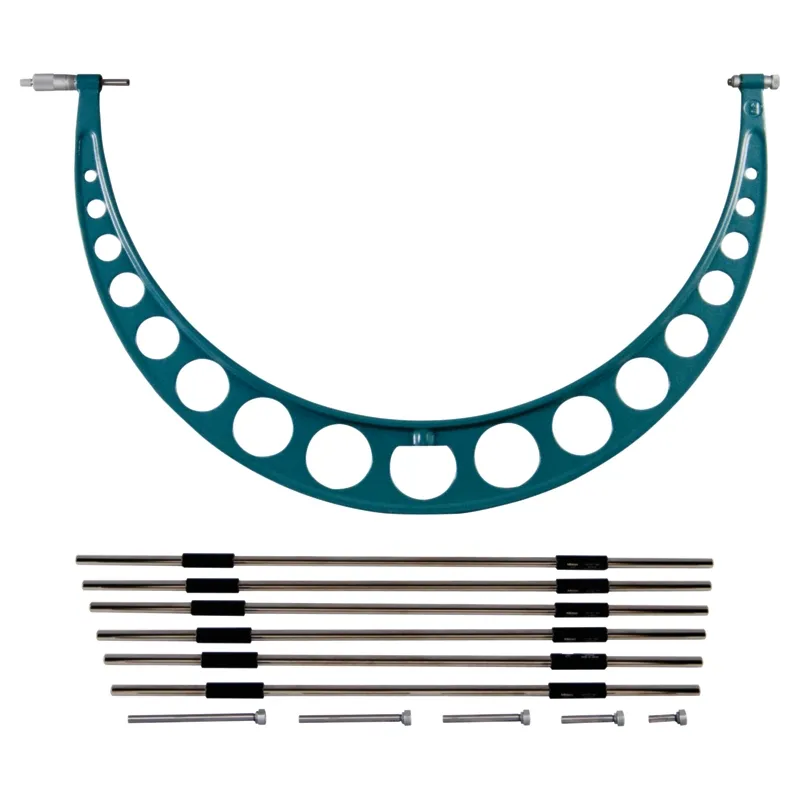

Outside Micrometer Interchangeable Anvil 24-30" 104-203 Mitutoyo

Outside Micrometer Interchangeable Anvil 24-30" 104-203 Mitutoyo

Rating:

0 reviews
Manufacturer:
Mitutoyo
Model:
104-203
Available:
In stock11
Delivered:
Including box, key, setting standard (6 pcs.), anvils (6 pcs.)
Digital/Analog:
Analog
Flatness:
0,00004"
Graduation:
0,001"
Inch-Metric:
Inch
Interchangeable anvils:
6
Limit of error:
±0,0007"
Mass:
9.96
Measuring face:
Carbide-tipped micro-lap finish spindle and hardened steel anvil
Measuring force:
10 - 14
Measuring spindle:
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Parallelism:
0,00036"
Range:
24 - 30
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Setting standard:
6 (24, 25, 26, 27, 28, 29")
Spindle feed error:
0.00015

Price: 1,286.00€

In stock

Quantity:

Description

A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.
