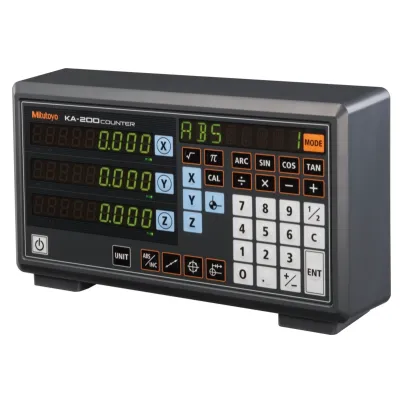

Linear Scale Counter KA-213 174-185D Mitutoyo

Linear Scale Counter KA-213 174-185D Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    174-185D
  • SKU:
    KA-213
  • Available:
    In stock
  • Model:
    KA-213
  • 1/2 calculation:
    Yes
  • Addition of 2-scale data:
    Yes
  • Axes:
    3
  • Bolt-hole circle machining:
    Yes
  • Coordinate system switching:
    Yes
  • Diameter display:
    Yes
  • Dimensions (WxDxH):
    260 x 167 x 80
  • Display:
    7-segment, 8-digit + sign + 8-character alphabet LED display
  • Error message:
    Yes
  • Linearity error compensation:
    Yes
  • Lower digit blanking out:
    Yes
  • Macro functions:
    Rectangular drilling and round milling newly added
  • Main features:
    Feed speed display; taper machining function; tool data; multipoint compensation; scale check function; calculation function
  • Mass:
    1.33 kg
  • Measurement direction setting:
    Yes
  • Memory backup:
    Yes
  • mm/inch conversion:
    Yes
  • Operation temperature:
    0°C to 45°C
  • Output (optional):
    RS-232C / USB
  • Pitch machinig:
    Yes
  • Resolution:
    With AT100 Series: 0.05 - 0.0001 mm With AT715: 0.01 - 0.001 mm
  • Resolution setting:
    Yes
  • Scale reference points:
    Yes
  • Smoothing:
    Yes
  • Zero approach function (Incremental mode):
    Yes
782.00€
In stock

Description

This counter displays length indication transmitted from a linear scale.
The KA-Counter offers you the following benefits:

  • Can be used as a “standard counter” or a “lathe counter” by modifying parameters.
  • Downsizing, weight saving and multiple function have been realized.
  • Sub display for easy operation.
  • Text data can be output using the optional USB interface.
  • The optional external interface RS-232C enables connection to a PC and a printer.
