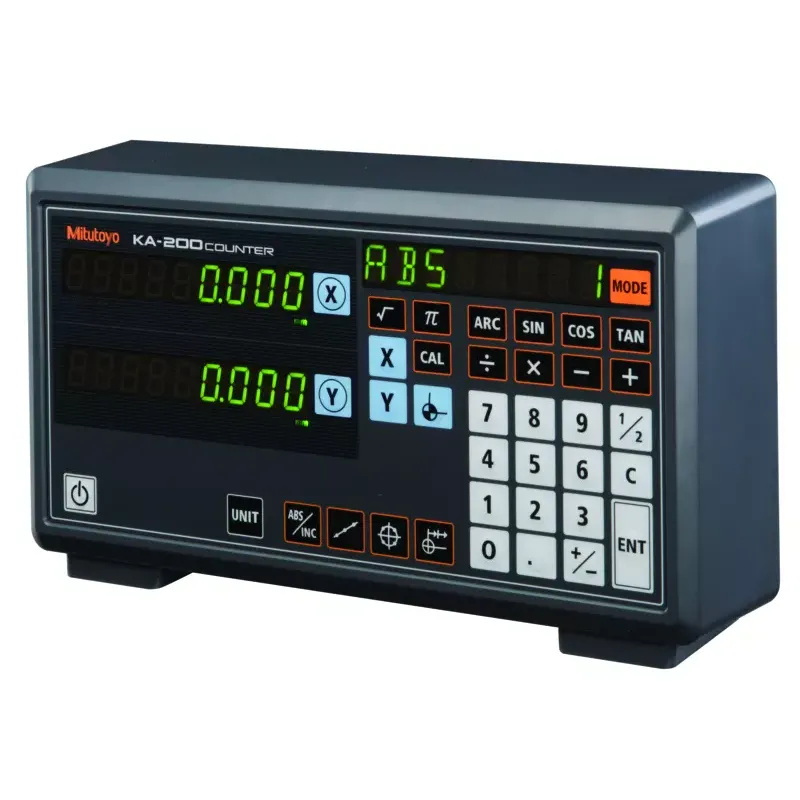

Linear Scale Counter KA-212 174-183E Mitutoyo

Rating:

0 reviews
Manufacturer:
Mitutoyo
Model:
174-183E
SKU:
KA-212
Available:
In stock11
Model:
KA-212
1/2 calculation:
Yes
Addition of 2-scale data:
Yes
Axes:
2
Bolt-hole circle machining:
Yes
Coordinate system switching:
Yes
Diameter display:
Yes
Dimensions (WxDxH):
300 x 70 x 167
Display:
7-segment, 8-digit + sign + 8-character alphabet LED display
Error message:
Yes
Linearity error compensation:
Yes
Lower digit blanking out:
Yes
Macro functions:
Rectangular drilling and round milling newly added
Main features:
Feed speed display; taper machining function; tool data; multipoint compensation; scale check function; calculation function
Mass:
1.25 kg
Measurement direction setting:
Yes
Memory backup:
Yes
mm/inch conversion:
Yes
Operation temperature:
0°C to 45°C
Output (optional):
RS-232C / USB
Pitch machinig:
Yes
Resolution:
With AT100 Series: 0.05 - 0.0001 mm With AT715: 0.01 - 0.001 mm
Resolution setting:
Yes
Scale reference points:
Yes
Smoothing:
Yes
Zero approach function (Incremental mode):
Yes

Price: 650.00€

In stock

Quantity:

This counter displays length indication transmitted from a linear scale.
The KA-Counter offers you the following benefits:

Can be used as a “standard counter” or a “lathe counter” by modifying parameters.
Downsizing, weight saving and multiple function have been realized.
Sub display for easy operation.
Text data can be output using the optional USB interface.
The optional external interface RS-232C enables connection to a PC and a printer.
