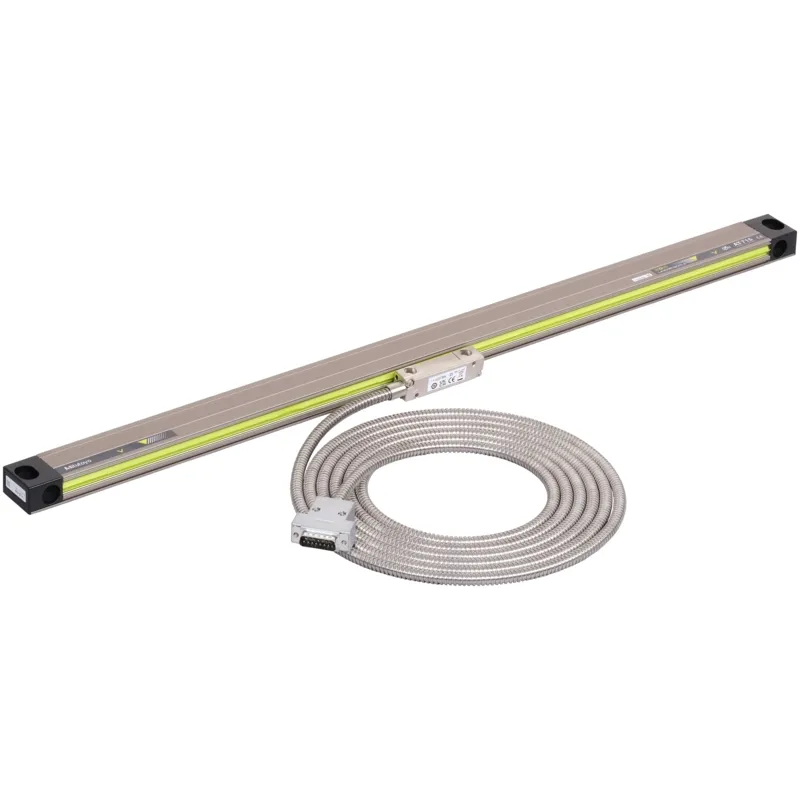

Linear Scale AT715-600 600 mm 539-811N Mitutoyo

Linear Scale AT715-600 600 mm 539-811N Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    539-811N
  • SKU:
    AT715-600
  • Available:
    In stock
  • Model:
    AT715-600
  • Accuracy:
    100 to 500 mm ±5 µm; 600 to 1800 mm ±7 µm; 2000 to 3000 mm ±10 µm

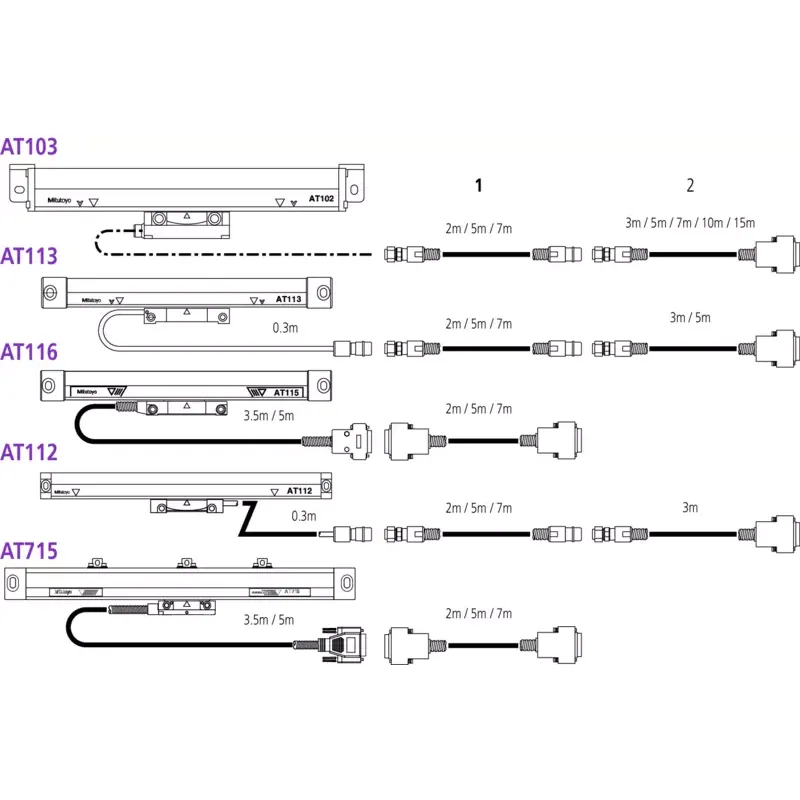

  • Cable length:
    3.5
  • Effective length:
    600 mm
  • Mass:
    1.2
  • Max. drive speed:
    50 m/min
  • Measuring method:
    Electromagnetic induction system
  • Resolution:
    0,001 / 0,005 (switchable via KA- KLD counters)
  • Signal period:
    20
392.00€
In stock

Description

This linear scale is based on electro magnetic induction principle thus offering you high enviroment protection IP level, in the mean time reference point is not necessary after  each power on.

Only compatible with KA series display units.
