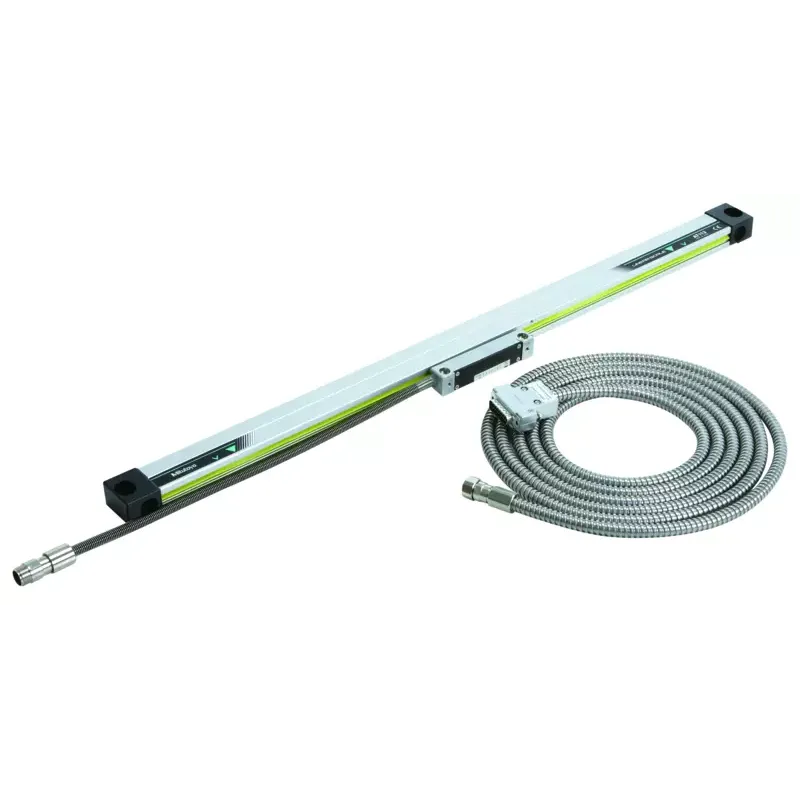

Linear Scale AT113 1000 mm 539-217-40 Mitutoyo

Linear Scale AT113 1000 mm 539-217-40 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    539-217-40
  • SKU:
    AT113-1000F
  • Available:
    In stock
  • Model:
    AT113-1000F
  • Accuracy:
    High-accuracy type (3+3L/1000) µm L = Effective range (mm)
  • Cable length:
    5
  • Dust/water protection level:
    IP53
  • Effective length:
    1,000 mm
  • Mass:
    1.9
  • Max. drive speed:
    120 m/min
  • Output waveform:
    Two 90° phase-shifted sinusoidal signals
  • Scale reference points:
    50 mm
  • Signal period:
    20
1,324.00€
In stock

Description

These linear scales are built for limited installation space
  • Glass scale - Zero not coded
  • Expansion factor (8 ± 1)x 10-6/K-1

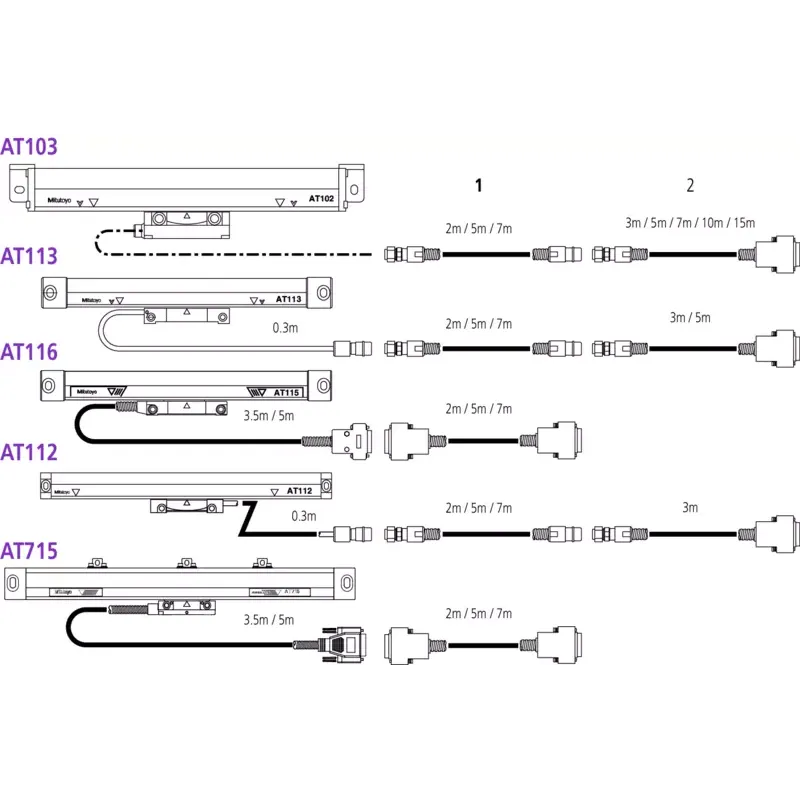

  • An armoured inox signal cable is used to connect the DRO counter
