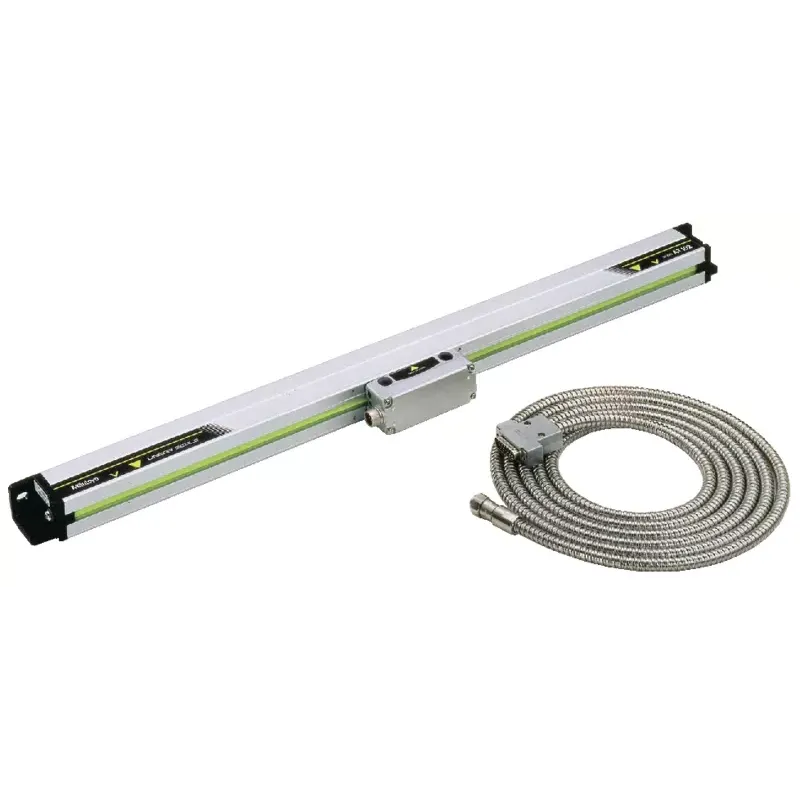

Linear Scale AT103 4000 mm 539-146-30 Mitutoyo

Linear Scale AT103 4000 mm 539-146-30 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    539-146-30
  • SKU:
    AT103-4000
  • Available:
    In stock
  • Model:
    AT103-4000
  • Accuracy:
    100 to 3000 mm (5+5L/1000) µm 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
  • Cable length:
    10
  • Dust/water protection level:
    IP53
  • Effective length:
    4,000 mm
  • Mass:
    12.6
  • Max. drive speed:
    50 m/min.
  • Output waveform:
    Two 90° phase-shifted sinusoidal signals
  • Scale reference points:
    every 50 mm
  • Signal period:
    20
4,809.00€
In stock

Description

These linear scales offer : Sturdy construction-high resistance to vibration-protection rating are similar in upright and reclining position
  • The innovative rubber lips keep out contaminants when you are using the scale in a machine shop.

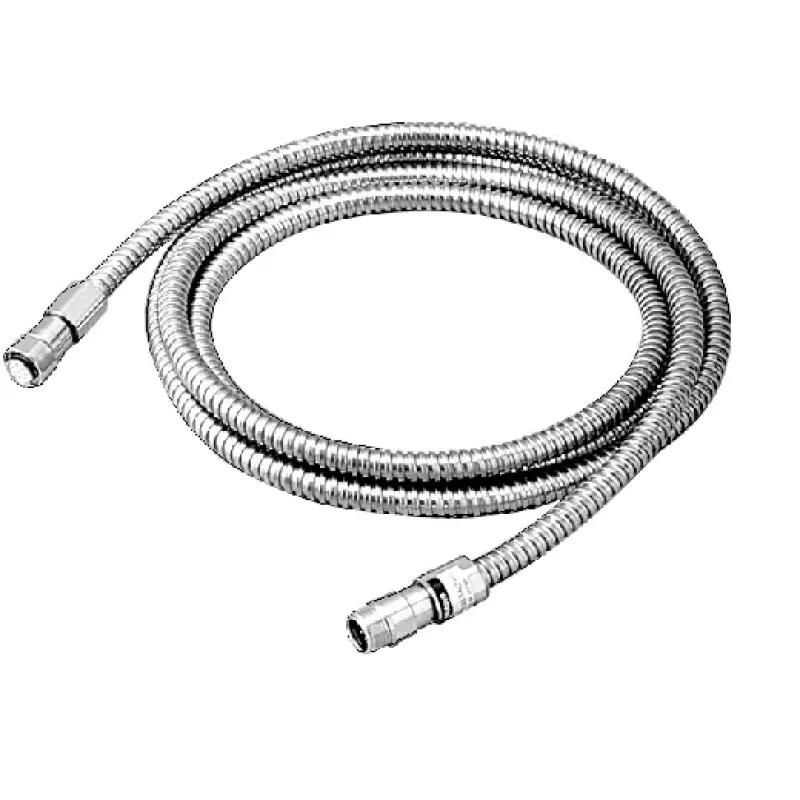

  • An armoured signal cable is used to connect the scale unit to the DRO counter, so you can operate it safely even in harsh environments.
  • The signal cable outlet can be positioned on either side of the slider, so you can connect the signal cable from either direction.

Reviews (0)

Write a review
