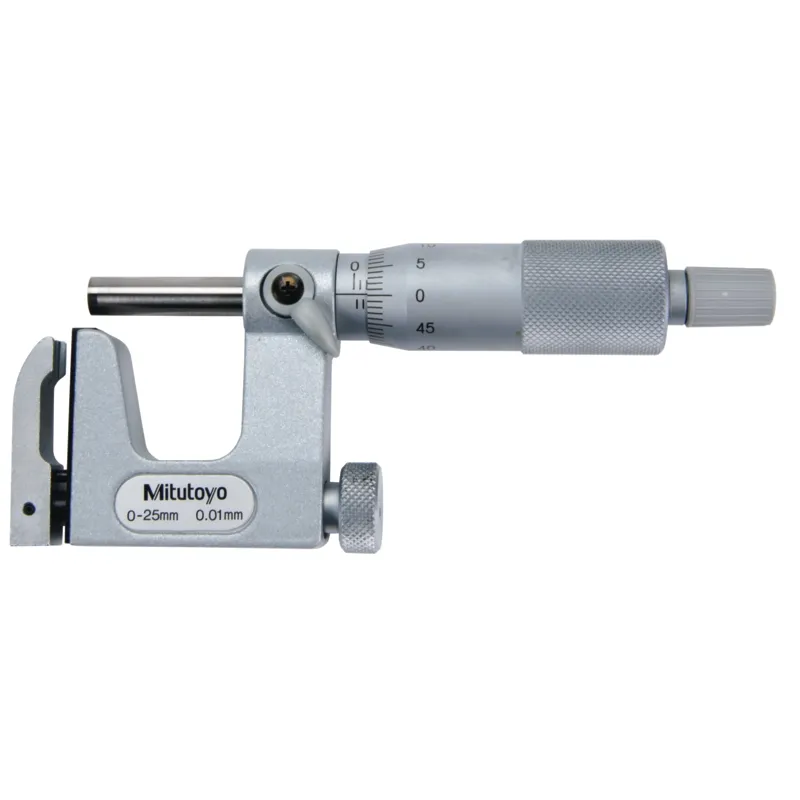

Interchangeable Anvil Micrometer 0-25mm 117-101 Mitutoyo

Interchangeable Anvil Micrometer 0-25mm 117-101 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    117-101
  • Available:
    In stock
  • Content of Set:
    Anvils 201217, 201216
  • Delivered:
    Including box, spanner, flat anvil 201216, rod anvil 201217
  • Digital/Analog:
    Analog
  • Flatness:
    0,6 μm (spindle), 2 μm (anvil)
  • Graduation:
    0,01 mm
  • Inch-Metric:
    Metric
  • Mass:
    255
  • Measuring face:
    Carbide-tipped micro-lap finish spindle and hardened steel anvil
  • Measuring force:
    5 - 10
  • Measuring spindle:
    With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
  • Parallelism:
    3 μm
  • Range:
    0 - 25
  • Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
  • Spindle feed error:
    3
333.00€
In stock

Description

A Mitutoyo non-digital micrometer that accepts easily interchangeable anvils to enable a wide variety of measurement, such as tubing thickness, shoulder-edge distance and rivet height. A ratchet stop guarantees repeatable measurement.
