Groove Micrometer, Non-Rotating Spindle 0-1", 0,25" Flange 146-231 Mitutoyo

Groove Micrometer, Non-Rotating Spindle 0-1", 0,25" Flange 146-231 Mitutoyo

Rating:

0 reviews
Manufacturer:
Mitutoyo
Model:
146-231
Available:
In stock11
Delivered:
Including box, spanner
Digital/Analog:
Analog
Graduation:
0,001"
Inch-Metric:
Inch
Mass:
135
Max. Permissible Error J MPE:
±0,0004"
Measuring face:
Hardened
Measuring force:
5 - 10
Measuring spindle:
Spindle pitch 0,5 mm
Parallelism:
0,0004"
Range Inside:
0.055"-1.05"
Range Outside:
0-1"
Scale:
Thimble and sleeve satin chrome finish, ø18 mm

Price: 543.00€

In stock

Quantity:

Description

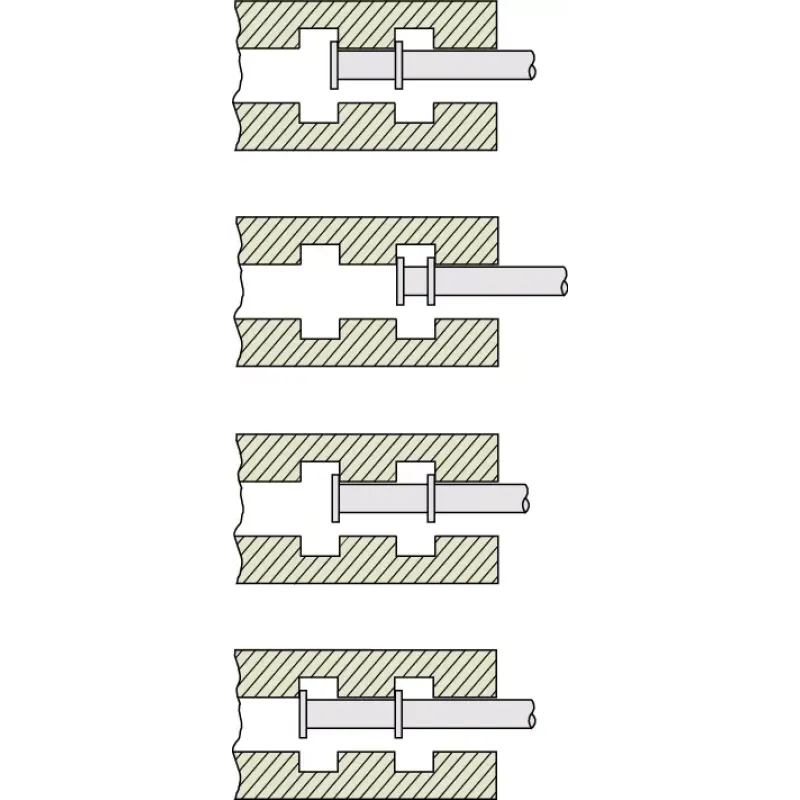

A non-digital tubular Mitutoyo micrometer equipped with concentric, disc-shaped anvils for making measurements inside holes, such as width, depth and location of grooves and projections. Separate graduations for inside and outside measurements avoid need for corrections for anvil thickness. A ratchet stop guarantees repeatable measurement.
