Gauge Block, Calibrated CTE, ISO 200mm, Grade K, Steel 611682-01B Mitutoyo

Rating:

0 reviews
Manufacturer:
Mitutoyo
Model:
611682-01B
Available:
In stock11
Accuracy:
EN ISO 3650
Delivered:

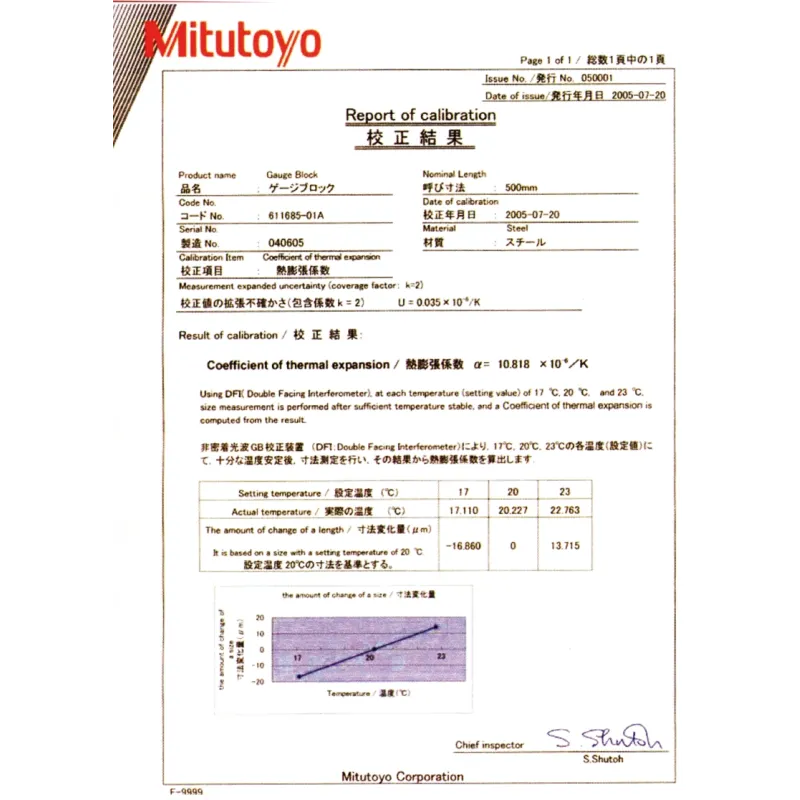

In a wooden case with JCSS calibration certificate (length) and calibration certificate (for CTE)
Grade:
K
Inch-Metric:
Metric
Length [mm]:
200
Mass:
490
Material:
Steel
Type of Certificate:
JCSS certificate

Price: 3,328.00€

In stock

Quantity:

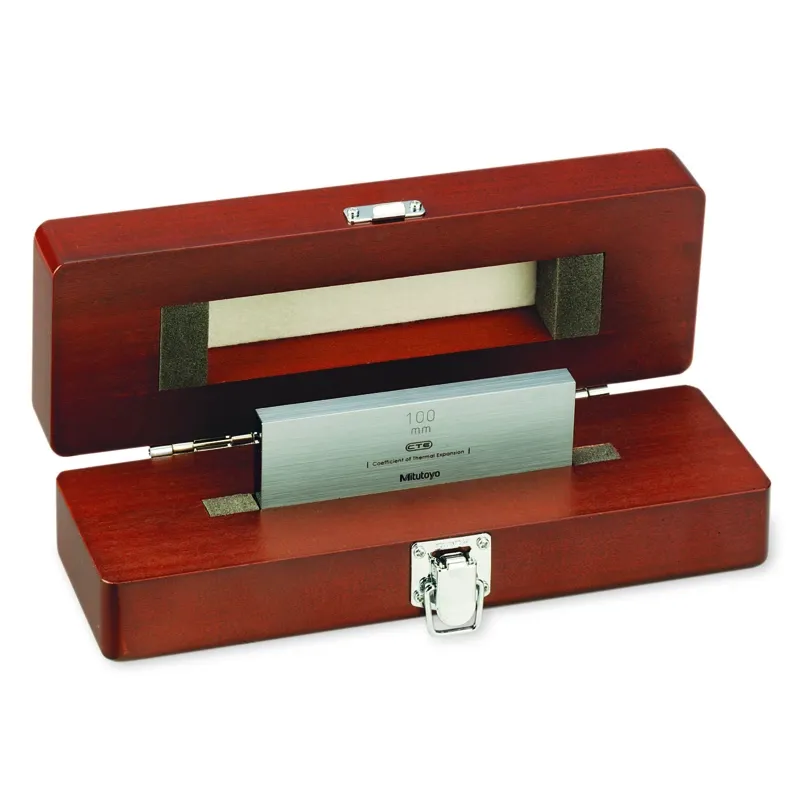

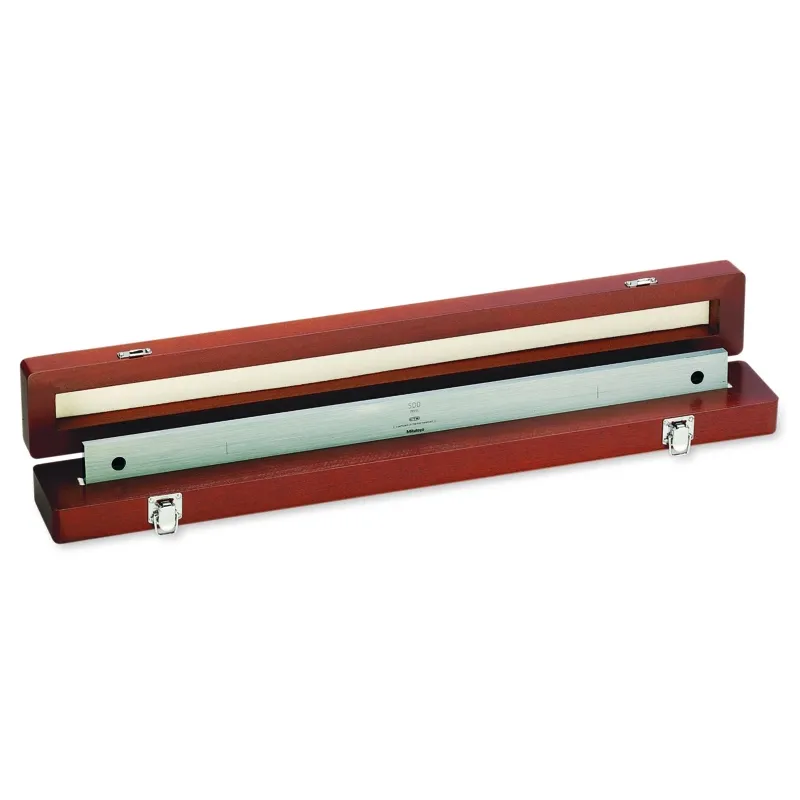

These are metric gauge blocks with a calibrated coefficient of thermal expansion.
They offer you the following benefits:

Mitutoyo offers top-level gauge blocks (steel and ceramic) which are superior to K class blocks, with their quality supported by Mitutoyo‘s best technologies.
They feature an accurately calibrated thermal expansion coefficient measured with a proprietary double-faced interferometer (DFI).
Each gauge block is calibrated for length on a highly accurate gauge block interferometer (GBI) system.
Uncertainty of thermal expansion coefficient: 0.035 x 10-6 /K (k=2).
Uncertainty of length measurement: 30 nm (k=2), for 100mm blocks.
