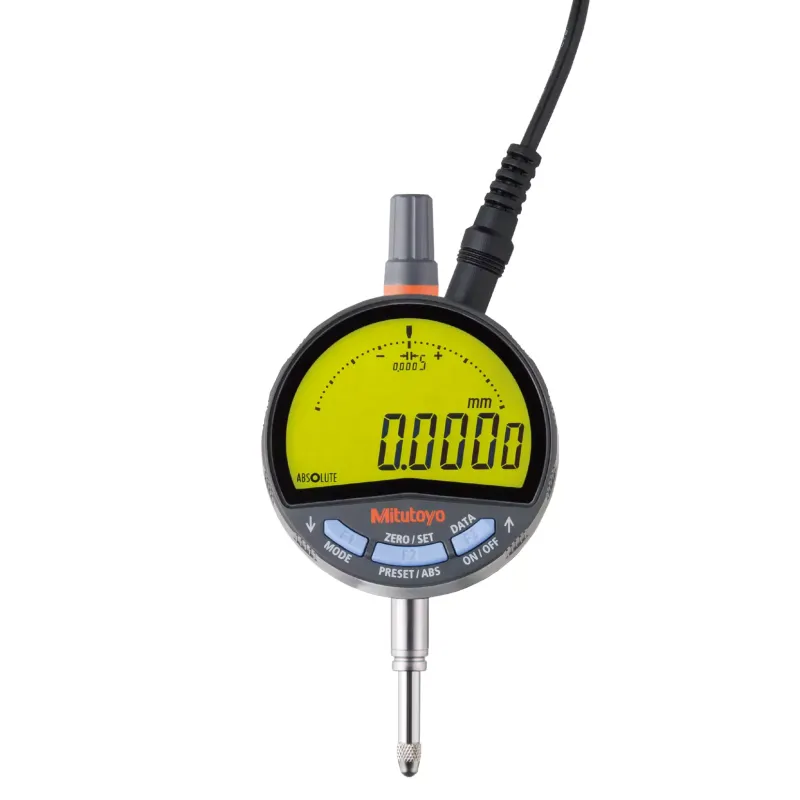

Digital Indicator ID-F 12,7mm, 0,0005mm, with BS AC-Adapter/Lug Back Plater 543-855-E Mitutoyo

Digital Indicator ID-F 12,7mm, 0,0005mm, with BS AC-Adapter/Lug Back Plater 543-855-E Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    543-855-E
  • Available:
    In stock
  • ABS / INC (INC ZERO):
    Yes
  • Alarm:
    Setting errors, sensor error, display overflow a.s.o.
  • Analog bar resolution switchable:
    Yes
  • Calculation function (with formula):
    Yes

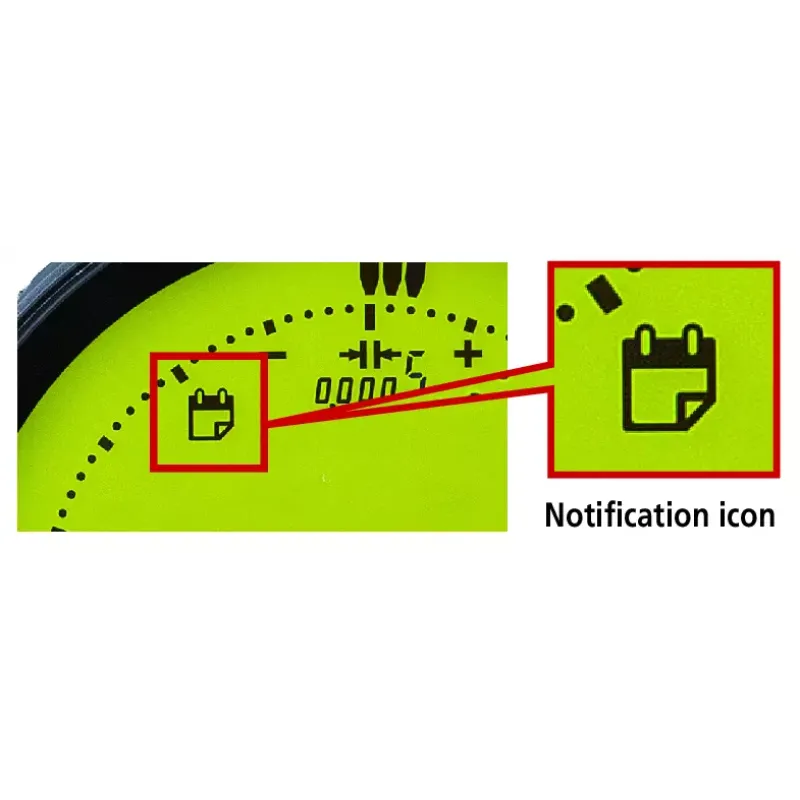

  • Calibration warning function:
    Yes
  • Contact point:
    Carbide ball, thread M 2.5 x 0.45 mm
  • Counting direction switchable:
    Yes
  • Customizing keys:
    Yes
  • DATA/HOLD:
    Yes
  • Delivered:
    Including AC-adapter, certificate of inspection
  • Digimatic data output:
    Yes
  • Digimatic S1 Bidirectional interface:
    Yes
  • Digital step:
    0.0005 mm/0.001 mm/0.01 mm
  • Digital step switchable:
    Yes
  • Digital/Analog:
    Digital
  • Display:

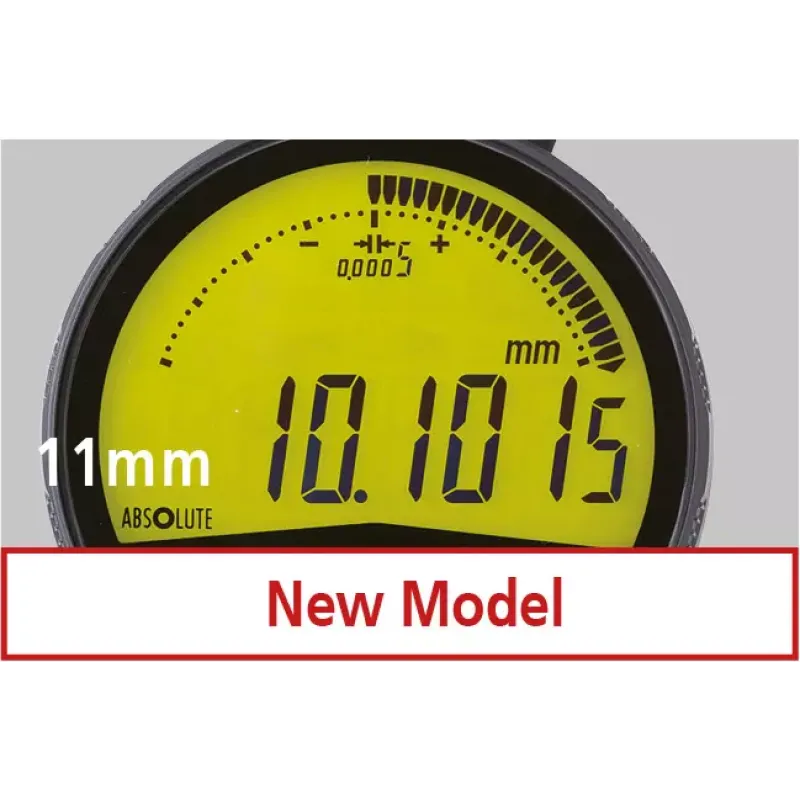

    LCD with red/green backlight, character height 11 mm
  • Function lock:
    Yes
  • GO/±NG judgement:
    Yes
  • H MPE (Hysteresis):
    0.002 mm
  • Inch-Metric:
    Metric
  • Mass:
    180
  • Max. Permissible Error E MPE (Total Range):
    0.0025 mm
  • Max. response speed:
    Unlimited
  • MAX/MIN/RANGE:
    Yes
  • Measurement frequency (MAX/MIN/RANGE):
    500 times/s
  • Measuring force MPL:
    ≤1.5 N
  • ON/OFF:
    Yes
  • Plunger Direction:
    Up to the horizontal direction
  • Power supply:
    AC adapter 5,9V DC, 2A
  • Protection:
    IP30
  • R MPE (Repeatability):
    0.002 mm
  • Range:
    12.7
  • Selectable resolution:
    Yes

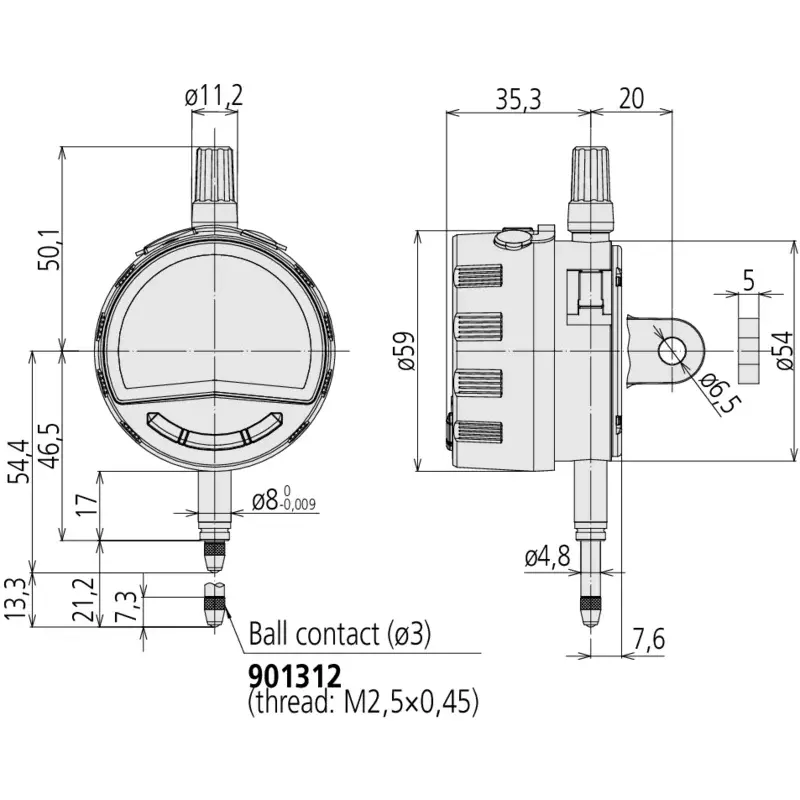

  • Stem ∅:
    8 mm
818.00€
In stock

Description

This is a superior multifunction indicator.
The ABSOLUTE Digimatic Indicator ID-F offers you the following benefits:
  • Bidirectional Digimatic S1 interface

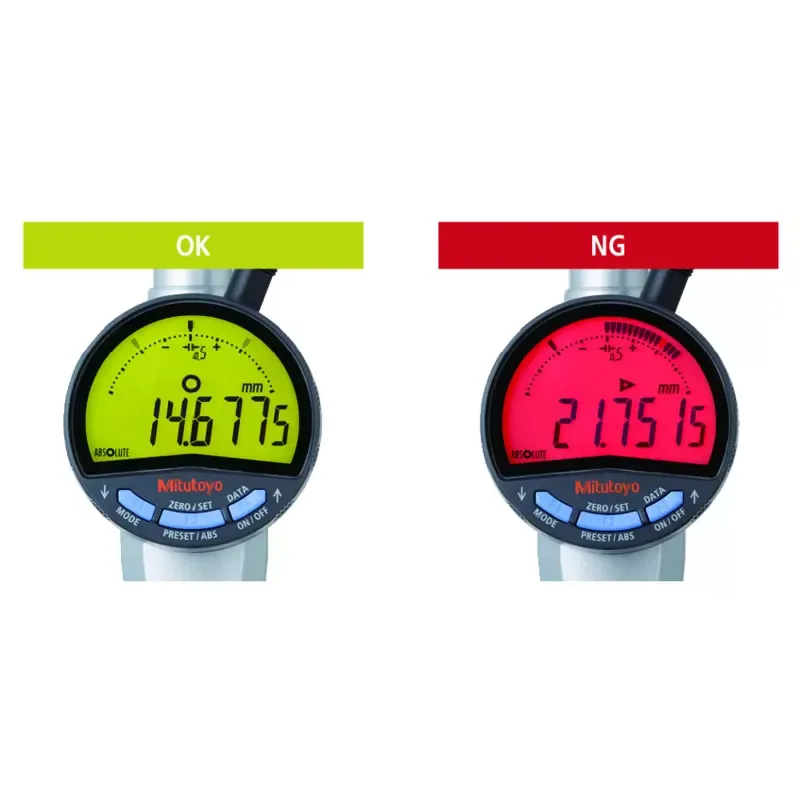

  • Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement
  • Analogue bar-graph display
  • MAX/MIN/RANGE (runout value) function with a frequency of 500 times/s
  • External power supply via AC-Adapter
  • High accuracy and 0,5 µm digital step
