Digital 3 Flute V-Anvil Micrometer 0,4-1" 314-362-30 Mitutoyo

Digital 3 Flute V-Anvil Micrometer 0,4-1" 314-362-30 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    314-362-30
  • Available:
    In stock
  • 2 x PRESET:
    Yes
  • ABS / INC (INC ZERO):
    Yes
  • Anvil:
    Without groove
  • Auto Power OFF after 20 min. non use:
    Yes
  • Battery life:
    Approx. 2.4 years
  • Delivered:

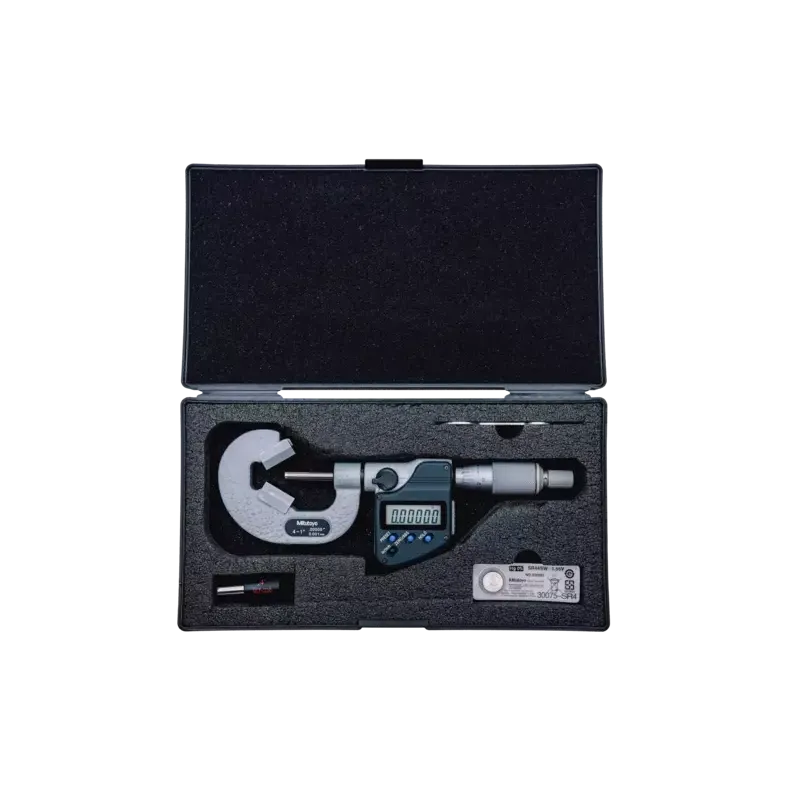

    Including box, spanner, setting standard, 1 SR44 battery
  • Digital step:
    0,00005"/0,001 mm
  • Digital/Analog:
    Digital
  • Display:
    LCD, character height 7.5 mm
  • Function lock:
    Yes
  • HOLD:
    Yes
  • Inch-Metric:
    Inch/Metric
  • Low voltage alarm:
    Yes
  • Mass:
    410
  • Max. Permissible Error J MPE:
    ±0,0002"
  • Measuring face:
    Prism angle 60°
  • Measuring force:
    5 - 10
  • Measuring spindle:
    With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
  • Power supply:
    1 battery SR-44
  • Range:
    0,4 - 1
  • Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
  • Setting standard:
    167-338 ø 0.4"
1,054.00€
In stock

Description

This Digimatic V-Anvil Micrometer helps you to measure cutting tools and taps.
It offers the following benefits:
  • It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.
  • V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.
