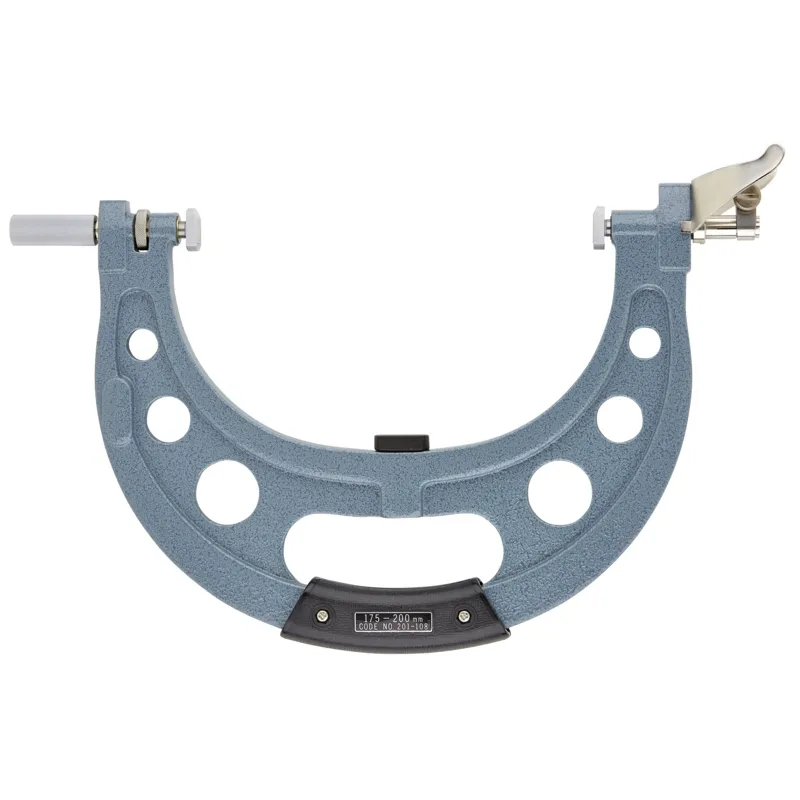

Dial Snap Gauge without Indicator 175-200mm 201-108 Mitutoyo

Dial Snap Gauge without Indicator 175-200mm 201-108 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    201-108
  • Available:
    In stock
  • Anvil retracting stroke:
    2 mm
  • Delivered:
    Including thermally insulating grip, workpiece stop
  • Flatness:
    1 µm
  • Inch-Metric:
    Metric
  • Mass:
    1160
  • Measuring face:
    Carbide-tipped, micro-lap finish (13.5x12 mm)
  • Measuring force:
    12 - 18
  • Parallelism:
    5 µm
  • Range:
    175 - 200
  • Remarks:
    For indicator with 8 mm stem
  • Repeatability:
    2 µm
674.00€
In stock

Description

A Mitutoyo dial snap gauge designed for quick GO/NG judgement of diameters of cylinders and shafts. Anvils are chamfered for easy workpiece insertion. The dial indicator is optional, enabling the user to choose from the wide range available to best suit the application.
