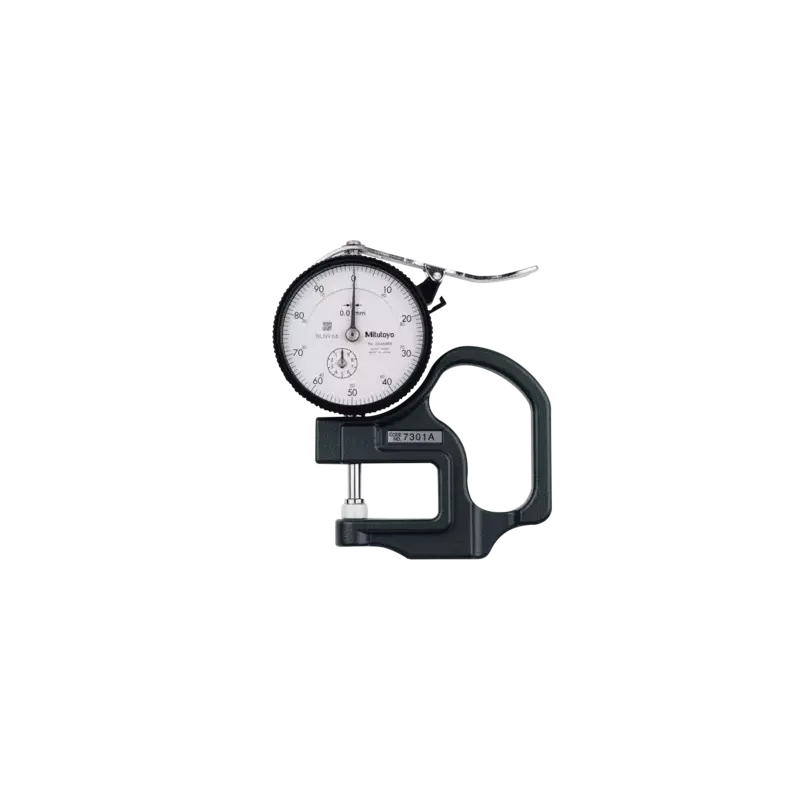

Dial Indicator Thickness Gauge 0-10mm, 0,01mm, Standard, Ceramic Contact Elements 7301A Mitutoyo

Dial Indicator Thickness Gauge 0-10mm, 0,01mm, Standard, Ceramic Contact Elements 7301A Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    7301A
  • Available:
    In stock
  • Contact point:
    Thread M 2.5 x 0.45 mm
  • Delivered:

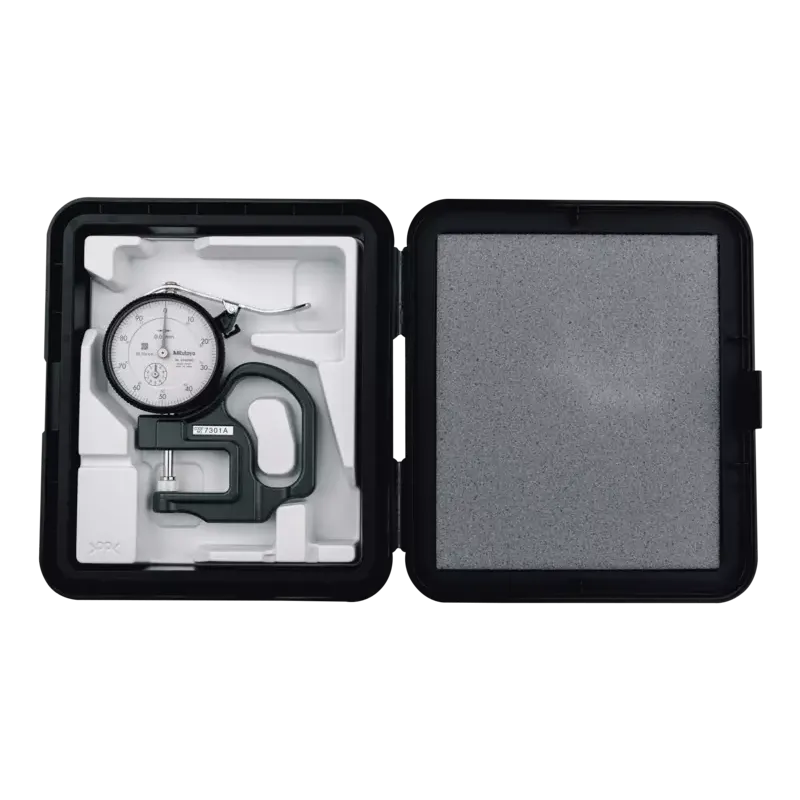

    In a box with spindle lifting lever 21AZB149
  • Functions:
    Ceramic disc contact points
  • Graduation:
    0.01
  • Inch-Metric:
    Metric
  • Indicator No.:
    2,046AB
  • Mass:
    205
  • Max. measuring depth:
    30 mm
  • Measuring force:
    ≤ 1,4
  • Parallelism:
    5 µm
  • Range:
    0 - 10
  • Type:
    Ceramic disc contact points
123.00€
In stock

Description

This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.
