Dial Gauge Micrometer 150-175mm, without Indicator 107-207 Mitutoyo

Dial Gauge Micrometer 150-175mm, without Indicator 107-207 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    107-207
  • Available:
    In stock
  • Anvil retracting stroke:
    3 mm
  • Delivered:

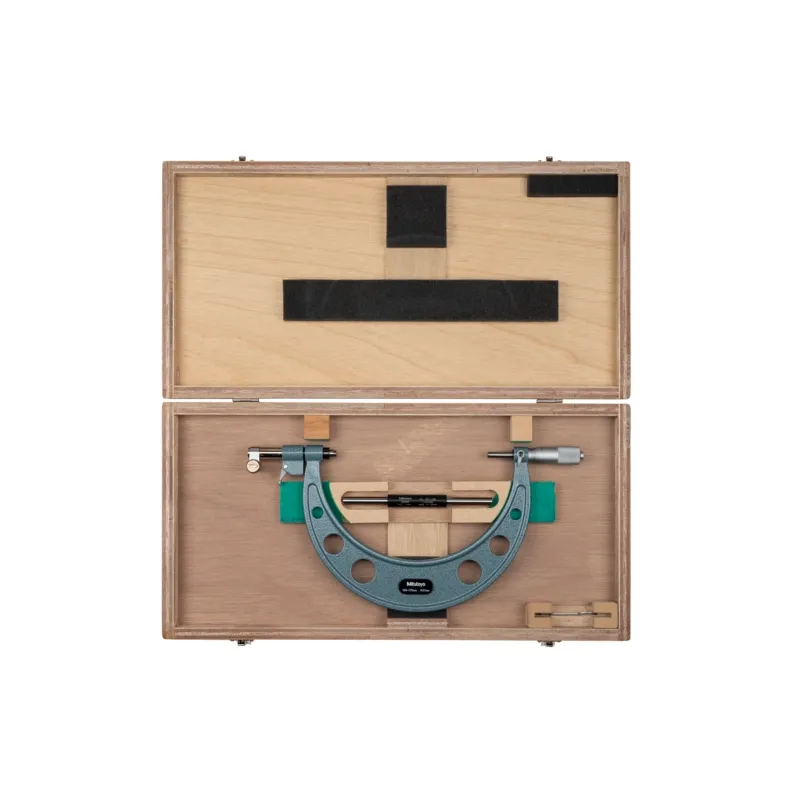

    Including box, with spanner, setting standard
  • Flatness:
    0,6 µm
  • Graduation:
    0.01 mm
  • Inch-Metric:
    Metric
  • Mass:
    1050
  • Measuring face:
    Carbide-tipped, micro-lap finish
  • Measuring force:
    5 - 10
  • Measuring spindle:
    With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
  • Parallelism:
    3 µm
  • Range:
    150 - 175
  • Scale:
    Thimble and sleeve satin chrome finish ø18 mm
  • Spindle feed error:
    3
595.00€
In stock

Description

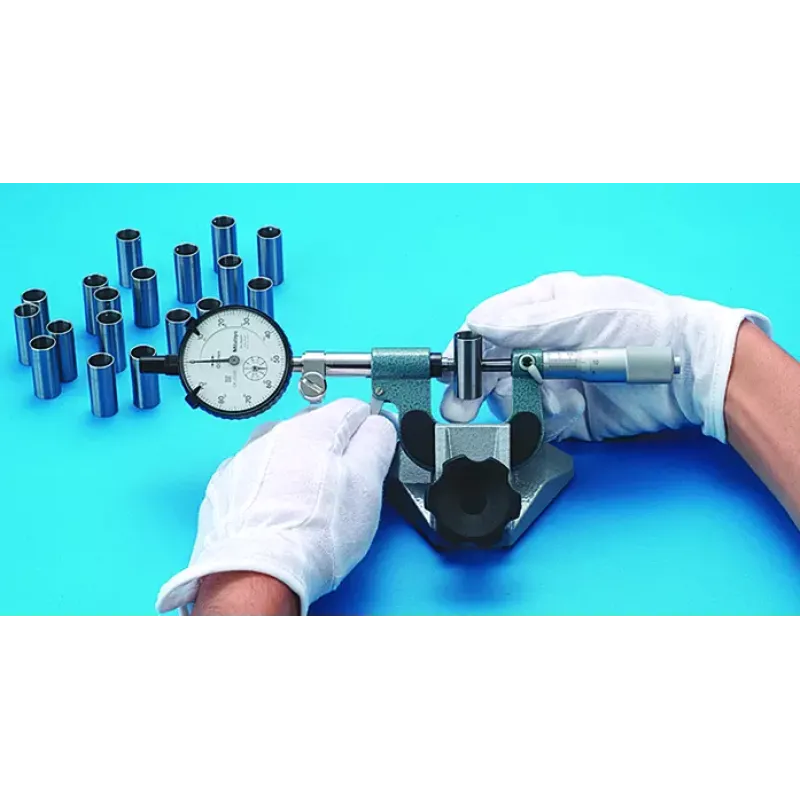

This Dial Gauge Micrometer allows you to quickly measure mass-produced parts.
It offers the following benefits:
  • Designed to mount a dial or a Digital indicator for direct GO/NG judgement of mass-produced parts.
  • You can take rapid measurements thanks to its anvil retracting trigger.
  • 3 mm anvil retracting stroke.
