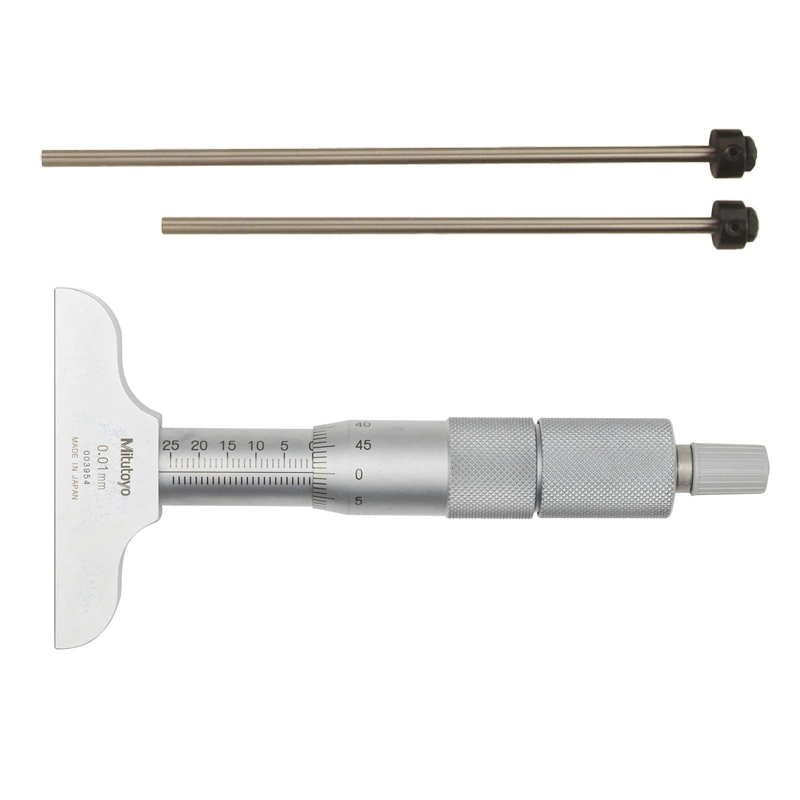

Depth Micrometer, Interchangeable Rods 0-50mm, 63mm Base 129-109 Mitutoyo

Depth Micrometer, Interchangeable Rods 0-50mm, 63mm Base 129-109 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    129-109
  • Available:
    In stock
  • Base:
    Hardened tool steel
  • Delivered:
    Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863
  • Digital/Analog:
    Analog
  • Flatness base:
    1.3 µm
  • Flatness rod:
    0,3 µm
  • Graduation:
    0,01 mm
  • Inch-Metric:
    Metric
  • Mass:
    260
  • Measuring face:
    Hardened, precision ground, micro-lap finish
  • Measuring force:
    5-10 N
  • Measuring span:
    25
  • Micrometer Head Feed (0-25 mm):
    ±3 µm
  • Number of rods:
    2
  • Parallelism base/rod:
    5 µm
  • Range:
    0 - 50
  • Scale:
    Thimble and sleeve satin chrome finish ∅18 mm
  • Spindle pitch:
    0,5
  • Zero point errors of rods:
    ±3 µm
202.00€
In stock

Description

This interchangeable rod type micrometer can be used for wide range measurements.
It offers you the following benefits:
  • ∅4 mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement.
  • The ratchet stop provides constant measuring force.
  • Measuring rod lock.
