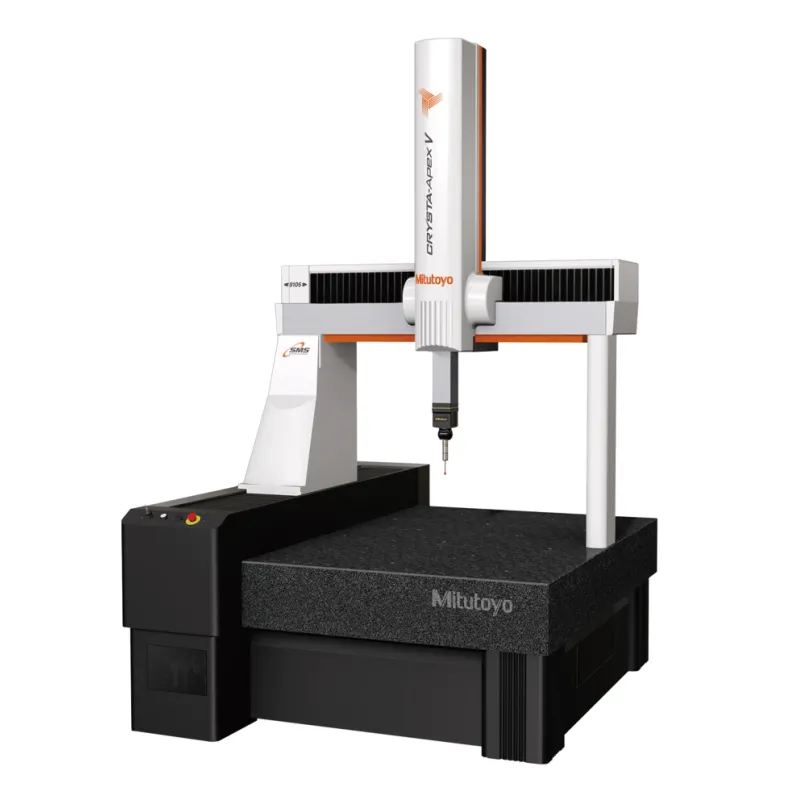

CRYSTA-Apex V9206 Range 900x2000x600mm 191-578 Mitutoyo

CRYSTA-Apex V9206 Range 900x2000x600mm 191-578 Mitutoyo

Rating:

0 reviews
Manufacturer:
Mitutoyo
Model:
191-578
SKU:
CRYSTA-Apex V9206
Available:
In stock11
Model:
CRYSTA-Apex V9206
3D Acceleration:
2,309 mm/s2
Accuracy:
E0, MPE from: (1,7+0,3L/100) µm
Air supply:
Pressure = 0,4
Depth:
3220 mm
Digital step:
0.1 µm
E0,MPE:
With SP25M: (1,7+4L/1000) µm; With TP200: (1,9+4L/1000) µm; With TP20: (2,2+4L/1000) µm; L = measured length [mm]
Height:
2,730
Loading Height:
800
Loading Weight:
1,800
Mass:
3,912
Max. drive speed:
519 mm/s (3-axis)
Range:
900 x 2000 x 600
Width:
1,670

Description

The latest generation CRYSTA-Apex coordinate measuring machines, the new CRYSTA-Apex V Series, is packed with state of the art technology, necessary for performing very accurate measurements at high speed. All new, using Mitutoyo’s world-renowned ABS scales, the CRYSTA-Apex V series has a high resistance to environmental conditions and does not require to perform homing upon start-up. SMS capability enables status and service monitoring, ready for use in a Smart Factory environment.

A future proof investment, the CRYSTA-Apex V is capable of tackling any task you might have in the future thanks to its ability to change or add probe systems and software with ease.

Main benefits:

Proven lightweight bridge-type construction with high rigidity air-bearings on every axis
High accuracy, high speed and high acceleration
Temperature sensors for compensation of machine and workpiece from 16° to 26°C and monitoring of the environmental temperature.
ABS linear scales provide high environmental resistance and saves time at start-up as homing is not necessary
UC480 controller supporting Multi-sensor and SMS functionality (Smart Measuring System)
