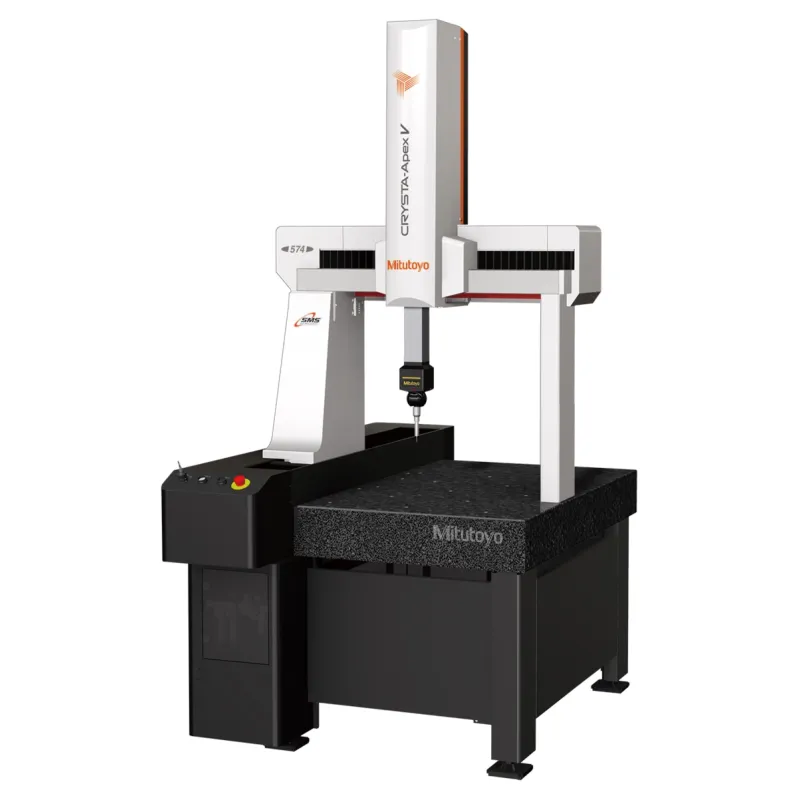

CRYSTA-Apex V574 Range 500x700x400mm with Anti-vibration stand 191-126 Mitutoyo
Out of stock

CRYSTA-Apex V574 Range 500x700x400mm with Anti-vibration stand 191-126 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    191-126
  • SKU:
    CRYSTA-Apex V574
  • Available:
    In stock
  • Model:
    CRYSTA-Apex V574
  • 3D Acceleration:
    2,309 mm/s2
  • Accuracy:
    E0, MPE from: (1,7+3L/1000) µm
  • Air supply:
    Pressure = 0,4
  • Depth:
    1548 mm
  • Digital step:
    0.1 µm
  • E0,MPE:
    With SP25M: (1,7+4L/1000) µm; With TP200: (1,9+4L/1000) µm; With TP20: (2,2+4L/1000) µm; L = measured length [mm]
  • Height:
    2,185
  • Loading Height:
    545
  • Mass:
    955
  • Max. drive speed:
    519 mm/s (3-axis)
  • Range:
    500 x 700 x 400
  • Width:
    1,082

Description

The latest generation CRYSTA-Apex coordinate measuring machines, the new CRYSTA-Apex V Series, is packed with state of the art technology, necessary for performing very accurate measurements at high speed. All new, using Mitutoyo’s world-renowned ABS scales, the CRYSTA-Apex V series has a high resistance to environmental conditions and does not require to perform homing upon start-up. SMS capability enables status and service monitoring, ready for use in a Smart Factory environment.

A future proof investment, the CRYSTA-Apex V is capable of tackling any task you might have in the future thanks to its ability to change or add probe systems and software with ease.

Main benefits:

  • Proven lightweight bridge-type construction with high rigidity air-bearings on every axis
  • High accuracy, high speed and high acceleration
  • Temperature sensors for compensation of machine and workpiece from 16° to 26°C and monitoring of the environmental temperature.
  • ABS linear scales provide high environmental resistance and saves time at start-up as homing is not necessary
  • UC480 controller supporting Multi-sensor and SMS functionality (Smart Measuring System)
