CRYSTA-Apex V204016 Range 2000x4000x1600 mm 191-816H Mitutoyo
Out of stock

CRYSTA-Apex V204016 Range 2000x4000x1600 mm 191-816H Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    191-816H
  • SKU:
    CRYSTA-Apex V204016
  • Available:
    In stock
  • Model:
    204016
  • Accuracy:
    E0, MPE from: (3,3+0,45L/100) µm
  • Digital step:
    0.1 µm
  • Loading Height:
    1,800
  • Loading Weight:
    5,000
  • Max. drive speed:
    693 mm/s (3-axis)
  • Range:
    2000 x 4000 x 1600

Description

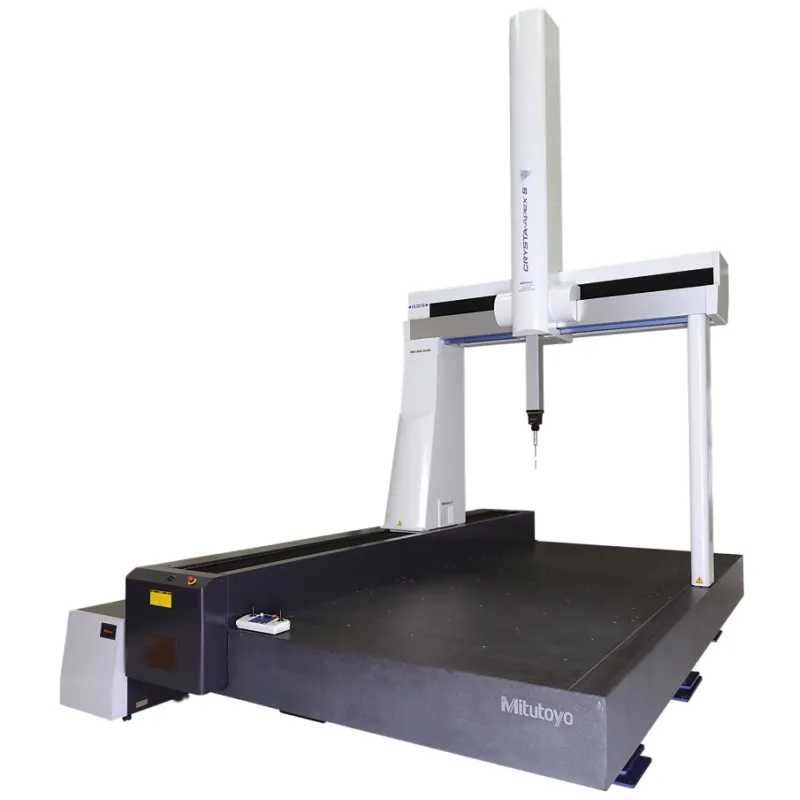

The CRYSTA-Apex V1200, 1600 & 2000 series offers you up to 12,8m³ measuring volume and still keeps an excellent 4,5 μm accuracy or better.

This series is developed for supporting quality evaluation of volumetric parts.
This high performance, cost effective coordinate measuring machine, designed and constructed according to Mitutoyo‘s extensive experience in CNC CMM technology.

Ready for touch trigger probe, scanning probe, optical probe and laser scanner probe.

Main benefits:

  • Proven lightweight bridge-type construction with high rigidity air-bearings on every axis
  • High accuracy, high speed and high acceleration
  • Temperature sensors for compensation of machine and workpiece from 16° to 24°C and monitoring of the environmental temperature.
  • ABS linear scales provide high environmental resistance and saves time at start-up as homing is not necessary
  • UC480 controller supporting Multi-sensor and SMS functionality (Smart Measuring System)
