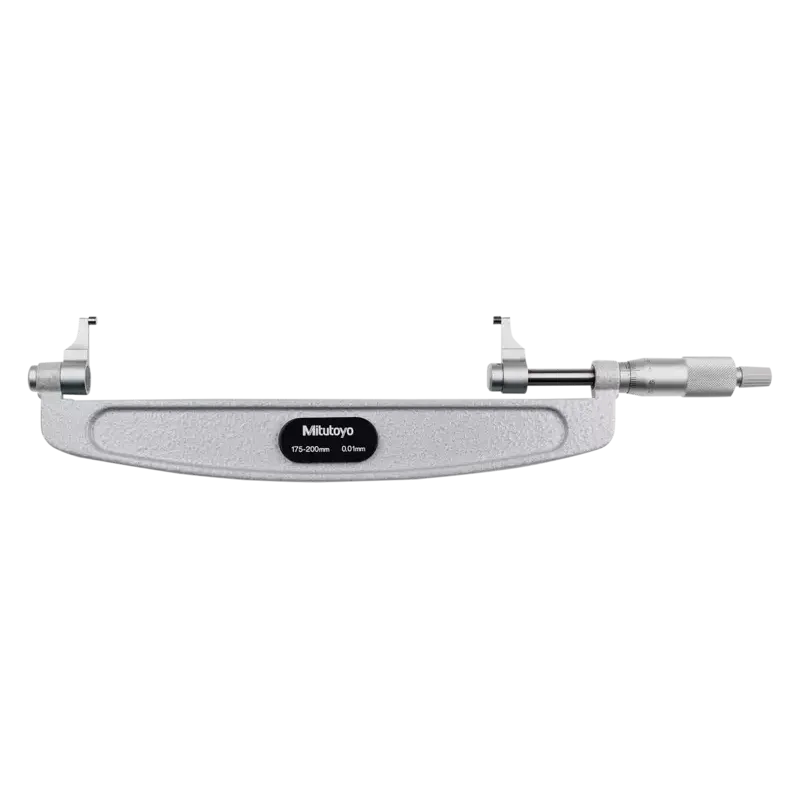

Caliper Jaw Micrometer 175-200mm 143-108 Mitutoyo

Caliper Jaw Micrometer 175-200mm 143-108 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    143-108
  • Available:
    In stock
  • Delivered:

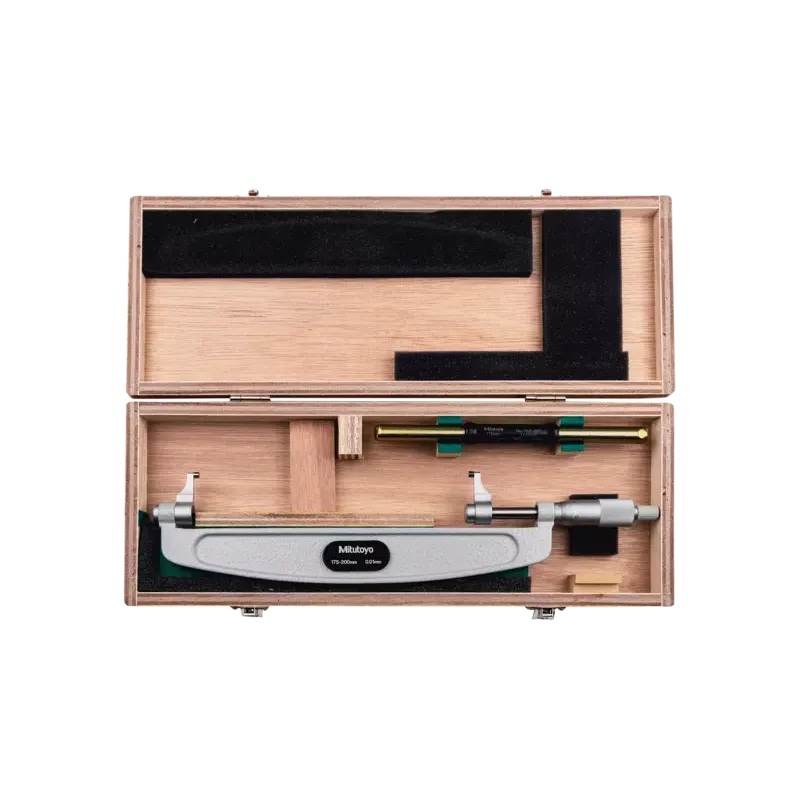

    Including box, spanner, setting standard
  • Digital/Analog:
    Analog
  • Flatness:
    0,3 μm
  • Graduation:
    0,01 mm
  • Inch-Metric:
    Metric
  • Mass:
    600
  • Max. Permissible Error J MPE:
    ±10 µm
  • Measuring face:
    Carbide-tipped, micro-lap finish
  • Measuring force:
    1 - 6
  • Measuring spindle:
    ø8 mm, spindle pitch 0,5 mm
  • Parallelism:
    5 µm
  • Range:
    175 - 200
  • Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
633.00€
In stock

Description

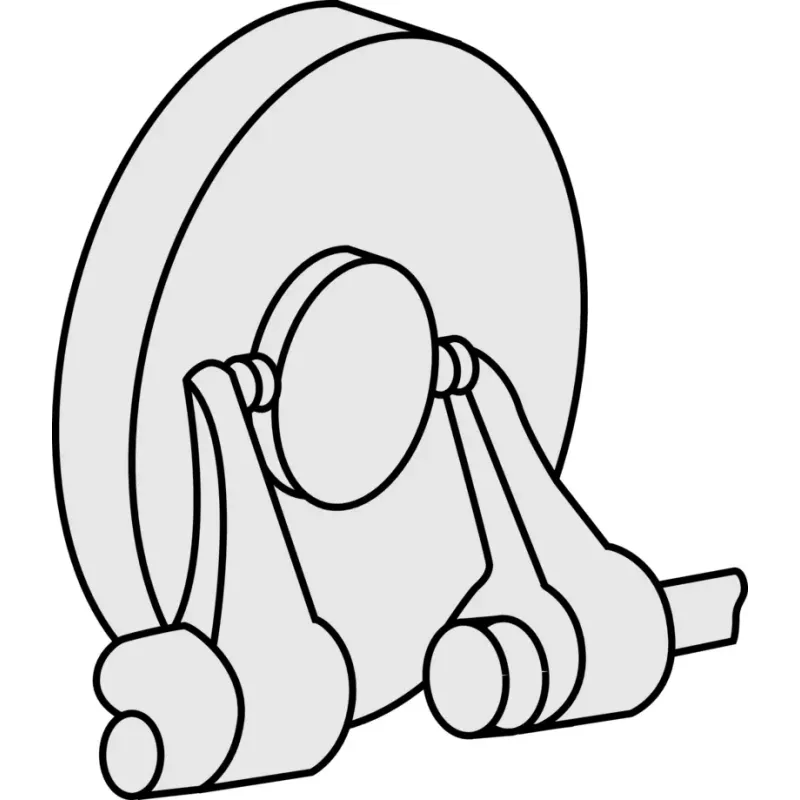

This Caliper Jaw Micrometer has been specially designed for measuring in hard-to-reach places.
