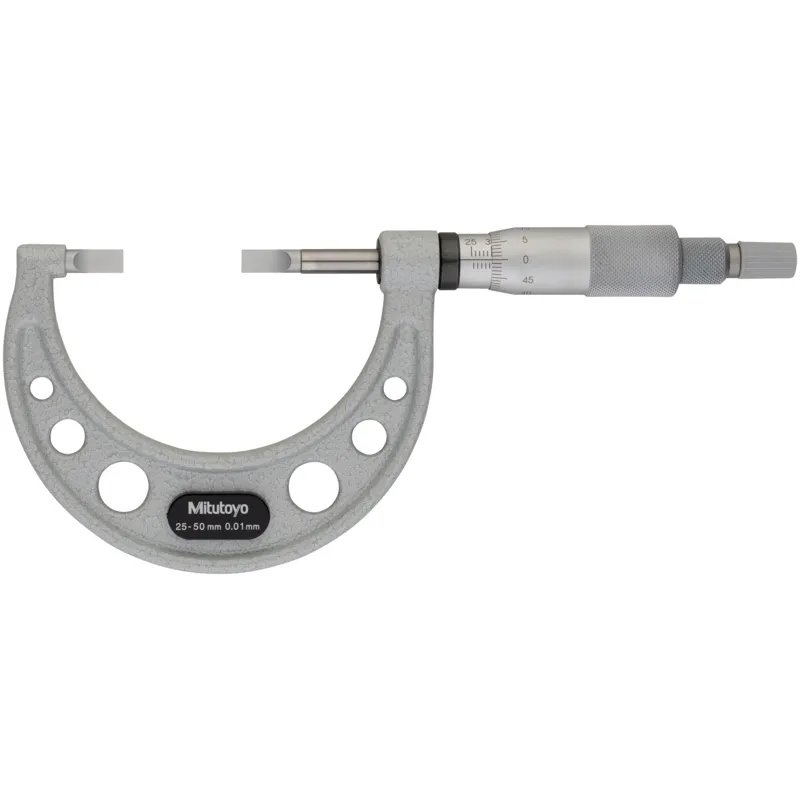

Blade Micrometer, Hardened Steel Blade 25-50mm, 0,75mm Blade 122-102-10 Mitutoyo

Blade Micrometer, Hardened Steel Blade 25-50mm, 0,75mm Blade 122-102-10 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    122-102-10
  • Available:
    In stock
  • Anvil / Spindle:
    Type A, hardened steel t=0.75 mm
  • Delivered:
    Including box, spanner, setting standard
  • Digital/Analog:
    Analog
  • Graduation:
    0.01 mm
  • Inch-Metric:
    Metric
  • Mass:
    300
  • Max. Permissible Error J MPE:
    ±3 µm
  • Measuring face:
    Carbide-tipped or hardened steel spindle and anvil
  • Measuring force:
    3 - 8
  • Measuring spindle:
    ø 6,35 mm, spindle pitch 0.5 mm
  • Parallelism:
    3 µm
  • Range:
    25 - 50
  • Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
367.00€
In stock

Description

This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:
  • Blade-shaped anvil and spindle for measuring the groove diameter of shafts.
  • Non-rotating spindle.
