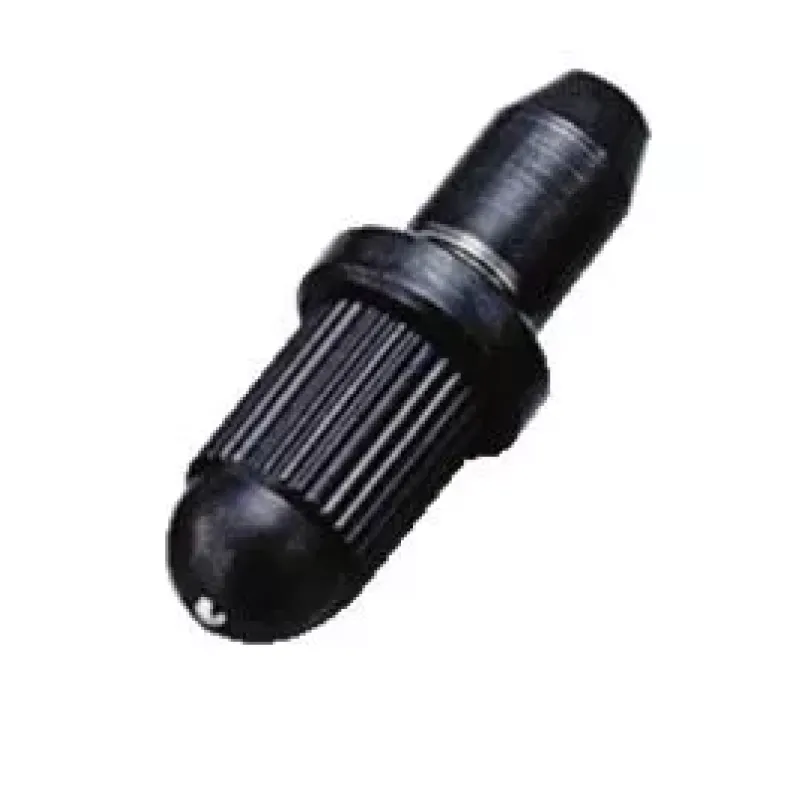

Ball indenter for Rockwell test, 1,5875mm tungsten carbide ball without calibration certificate 11AAD465 Mitutoyo
Out of stock

Ball indenter for Rockwell test, 1,5875mm tungsten carbide ball without calibration certificate 11AAD465 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    11AAD465
  • Available:
    In stock
  • Ball Diameter Inch:
    1/16"
  • Ball Diameter mm:
    1.5875
  • Calibration:
    without
  • Chamfer angle°:
    20
  • Collar Ø mm:
    10
  • Description:
    Rockwell ball indenter with 1,5875mm 1/16" tungsten carbide ball. Calibration certificate not included.
  • Material:
    tungsten carbide
  • Method:
    Rockwell
  • Product line:
    HR-100 HR-200 HR-300 HR-400 HR-500 HR-600 AR-10, AR-20 ARK
  • Shaft length:
    11
  • Shaft Ø mm:
    6.3
  • Total length mm:
    26.9
  • Type:
    Ball indenter
  • Usable length mm:
    15.9

Description


Mitutoyo indenters for Rockwell hardness test

As the interface between machine and material, the indenter must be of immaculate quality.
Therefore Mitutoyo only uses diamond indenters from the most experienced suppliers.
The indenters are calibrated in the highest standard calibration laboratories in the DAkkS accreditation body, accredited according to ISO 17025 and traceable to the PTB.
Constant development at our calibration partners secures an unmatched quality level.

Rockwell diamond indenter feature DAkkS calibration certificates according to DIN EN ISO 6508-2 and/or ASTM E18.
A function test, verifying the applicability of the indenter in regard of various indentation depth levels under different test forces, is optionally available.

Ball holders are made by
