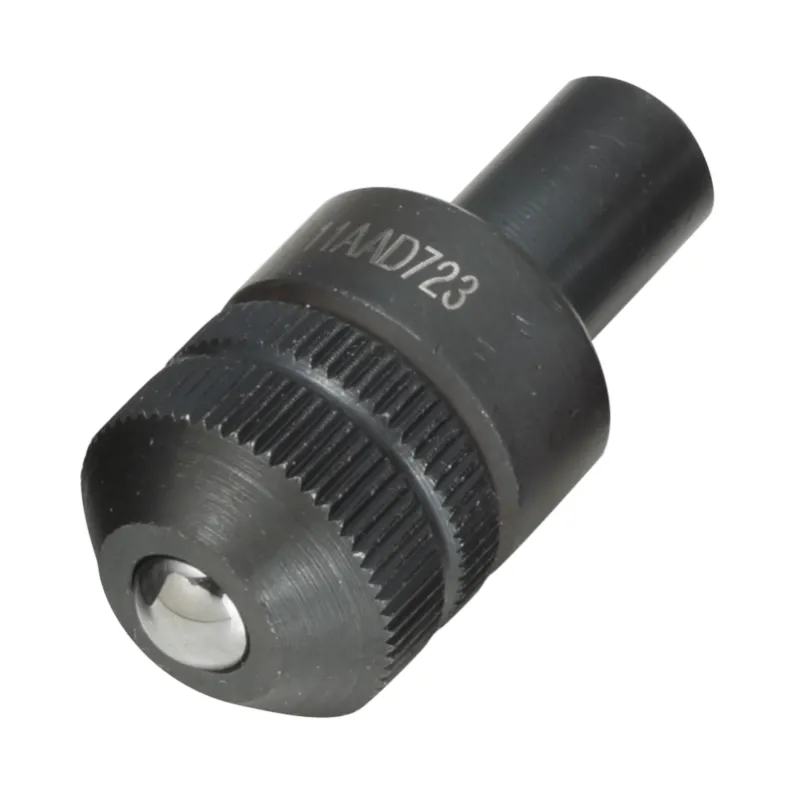

Ball indenter for Brinell test, 5 mm tungsten carbide ball without calibration certificate 11AAD723 Mitutoyo

Ball indenter for Brinell test, 5 mm tungsten carbide ball without calibration certificate 11AAD723 Mitutoyo

Rating:

0 reviews
Manufacturer:
Mitutoyo
Model:
11AAD723
Available:
In stock11
Ball Diameter mm:
5
Calibration:
without
Chamfer angle°:
20
Collar Ø mm:
12
Description:
Brinell ball indenter with 5,0mm tungsten carbide ball. Calibration certificate not included.
Material:
tungsten carbide
Method:
Brinell Ball indentation test
Product line:
HR-100 HR-200 HR-300 HR-400 HR-500 HR-600 AR-10, AR-20 ARK
Shaft length:
10
Shaft Ø mm:
6.3
Total length mm:
26
Type:
Ball indenter
Usable length mm:
16

Price: 189.00€

In stock

Quantity:

Description

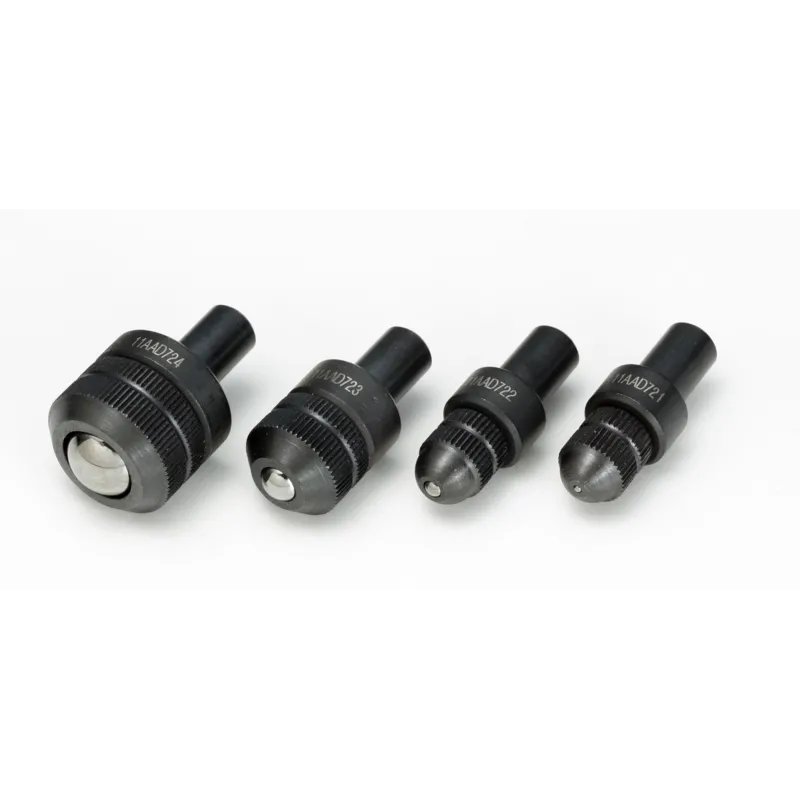

Mitutoyo indenters for Brinell hardness test

As the interface between machine and material, the indenter must be of immaculate quality.
Ball holders are made by Mitutoyo, and are supplied without calibration certificate for the included ball.
Please order a ball with DAkkS calibration certificate according to DIN EN ISO 6506-2 and ASTM E10 separately.

Please contact us if you do not find what you are looking for.
