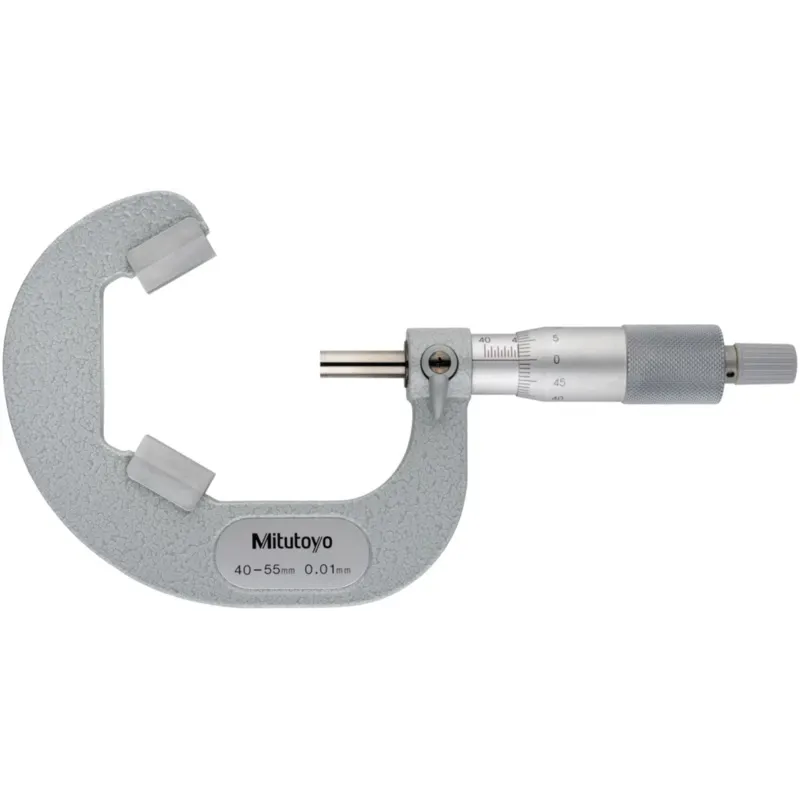

3 Flute V-Anvil Micrometer 40-55mm 114-104 Mitutoyo

3 Flute V-Anvil Micrometer 40-55mm 114-104 Mitutoyo
  • Rating:
    0 reviews
  • Manufacturer:
    Mitutoyo
  • Model:
    114-104
  • Available:
    In stock
  • Anvil:
    Without groove
  • Delivered:

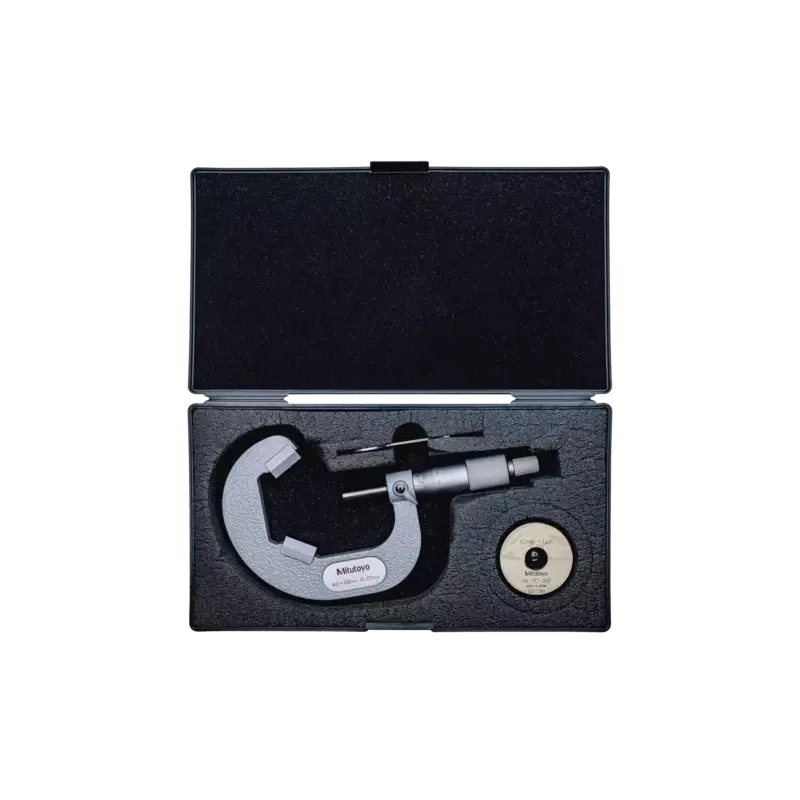

    Including box, spanner, setting standard
  • Digital/Analog:
    Analog
  • Graduation:
    0,01 mm
  • Inch-Metric:
    Metric
  • Mass:
    465
  • Max. Permissible Error J MPE:
    ±6 µm
  • Measuring face:

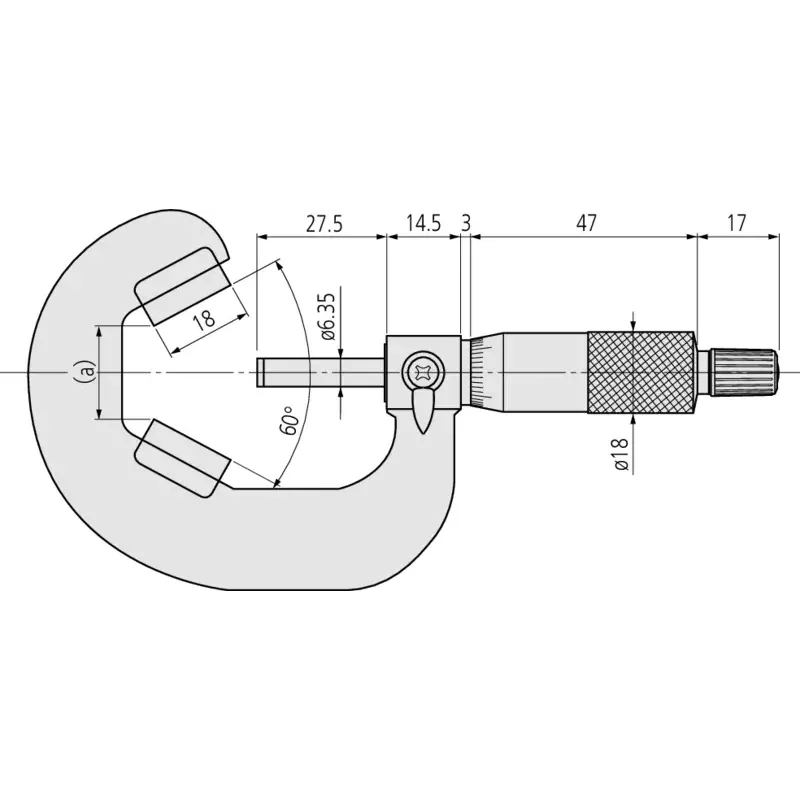

    Prism angle 60°/108°
  • Measuring force:
    5 - 10
  • Measuring spindle:
    With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
  • Range:
    40 - 55
  • Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
  • Setting standard:
    167-330 ø 40 mm
548.00€
In stock

Description

This V-Anvil Micrometer helps you measure cutting tools and taps.
It offers the following benefits:
  • It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
  • V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.
