3 Flute V-Anvil Micrometer 1-1.6" 114-113 Mitutoyo

3 Flute V-Anvil Micrometer 1-1.6" 114-113 Mitutoyo

Rating:

0 reviews
Manufacturer:
Mitutoyo
Model:
114-113
Available:
In stock11
Anvil:
Without groove
Delivered:
Including box, spanner, setting standard
Digital/Analog:
Analog
Graduation:
0,0001"
Inch-Metric:
Inch
Mass:
400
Max. Permissible Error J MPE:
±0,00025"
Measuring face:
Prism angle 60°/108°
Measuring force:
5 - 10
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Range:
1 - 1,6
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Setting standard:
167-339 ø 1"

Price: 485.00€

In stock

Quantity:

Description

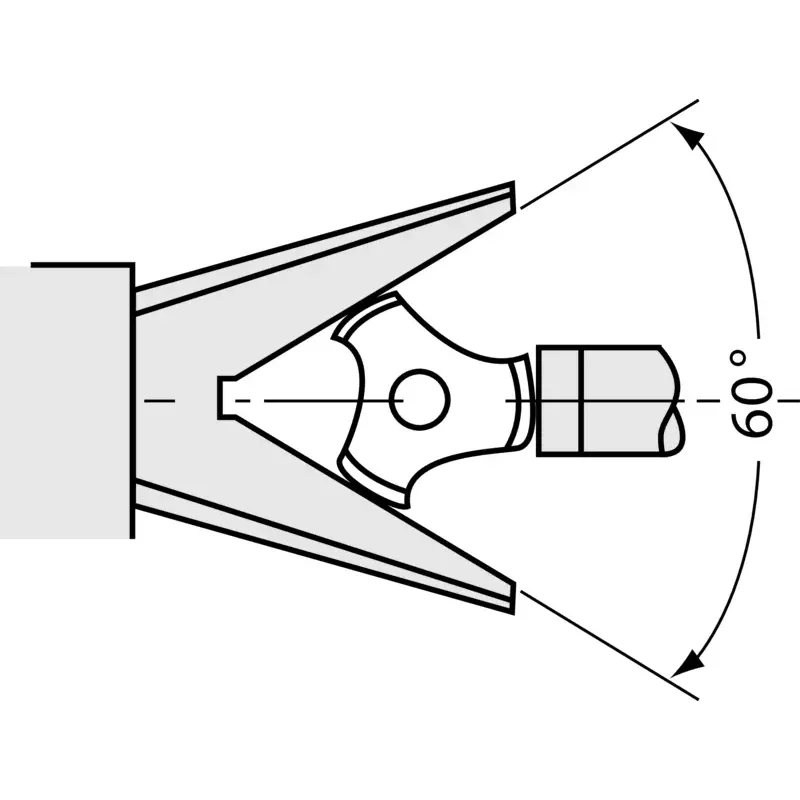

A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 3-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.
