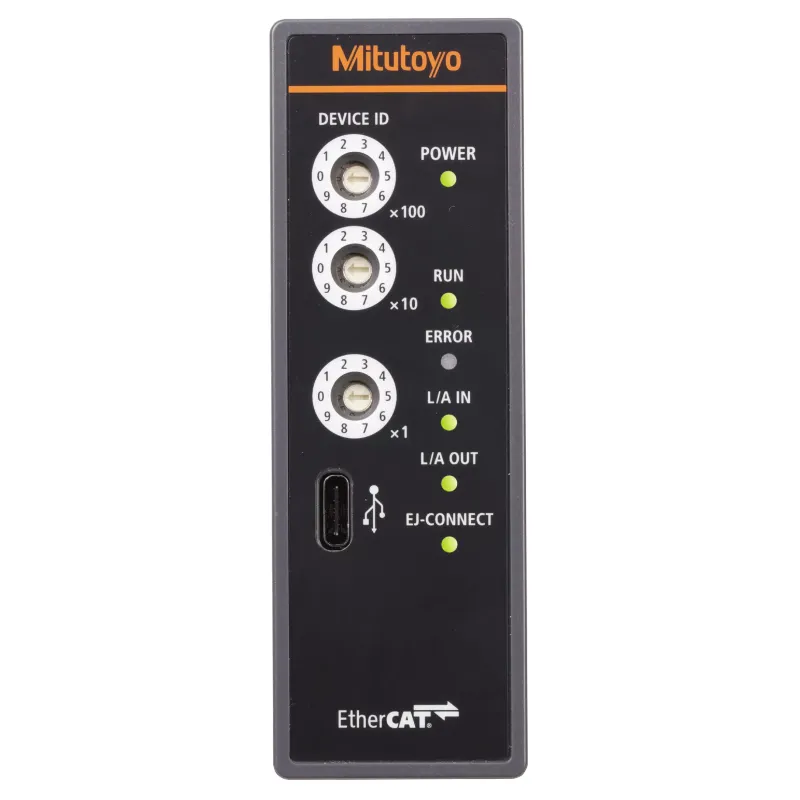

Блок EtherCAT I/F для EJ Counter 21HZA264 Mitutoyo

Є в наявності11

Interface Unit EtherCAT

YES (can used cross cable and straight cable)

Input voltage: 10 - 27V DC supplied from EJ-Counter Maximum power consumption: Single EJ Counter: 3W or less Maximum consolidation: 30W or less

Current value data (No unit, signed 32 bit data), Tolerance judgment result

TCP/IP compliant cable (Cu) Cat5e and above

RJ45 2 ports

100Mbps

165

EtherCAT

0°C to 50°C / 20% to 80% rel. humidity, no condensation

IEC 61158 / IEC 61784

-10°C to 60°C / 20% to 80% rel. humidity, no condensation

Type C

Designed to collect data from Mitutoyo's compact EJ Counters, this interface connects measurement peripherals to your IO controllers with ease! Quick and easy setup, the EtherCAT interface directly connects to your EJ counters. Compact, the interface was created with a low profile in mind, maintaining the ability to mount an entire system in small spaces on a single DIN rail. Conforming to EtherCAT´s industrial standards, you can now use it as an input into your preexisting EtherCAT system. Secure, EtherCAT systems are widely used as standard throughout many industries.

USB 2.0 Full Speed (12Mbps)
